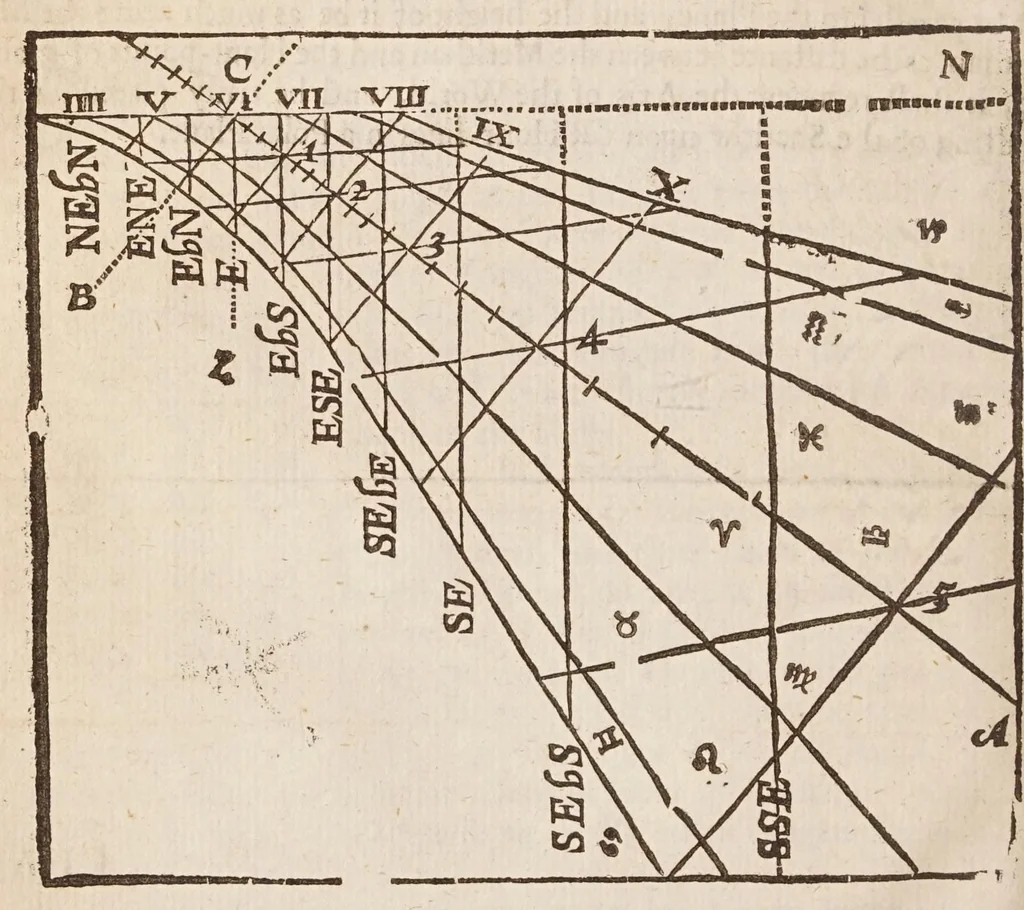

— 3A | The Defcription of the Hour-lines CHAP. HI. ra To draw the Hour-lines in a Meridian Plane. A Meridian Plane is that which is parallel to che Meridian Circle in ; the Fundamental Diagram, reprefented by $.-ZN 3 it hath two ‘Faces, one to the Eaft, and the other to the Weft; ineach of them the… … other, asin a Polar Plane ; the difference being only in the placing of the Equator, and in numbring of the Hours. 1 For in thefe Meridian Planes having drawn an occult Vertical Line CZ, and an occult Horizontal Line C N, croffing onethe other at Right Anglesia the Point C, the Equator AC will cuc…
