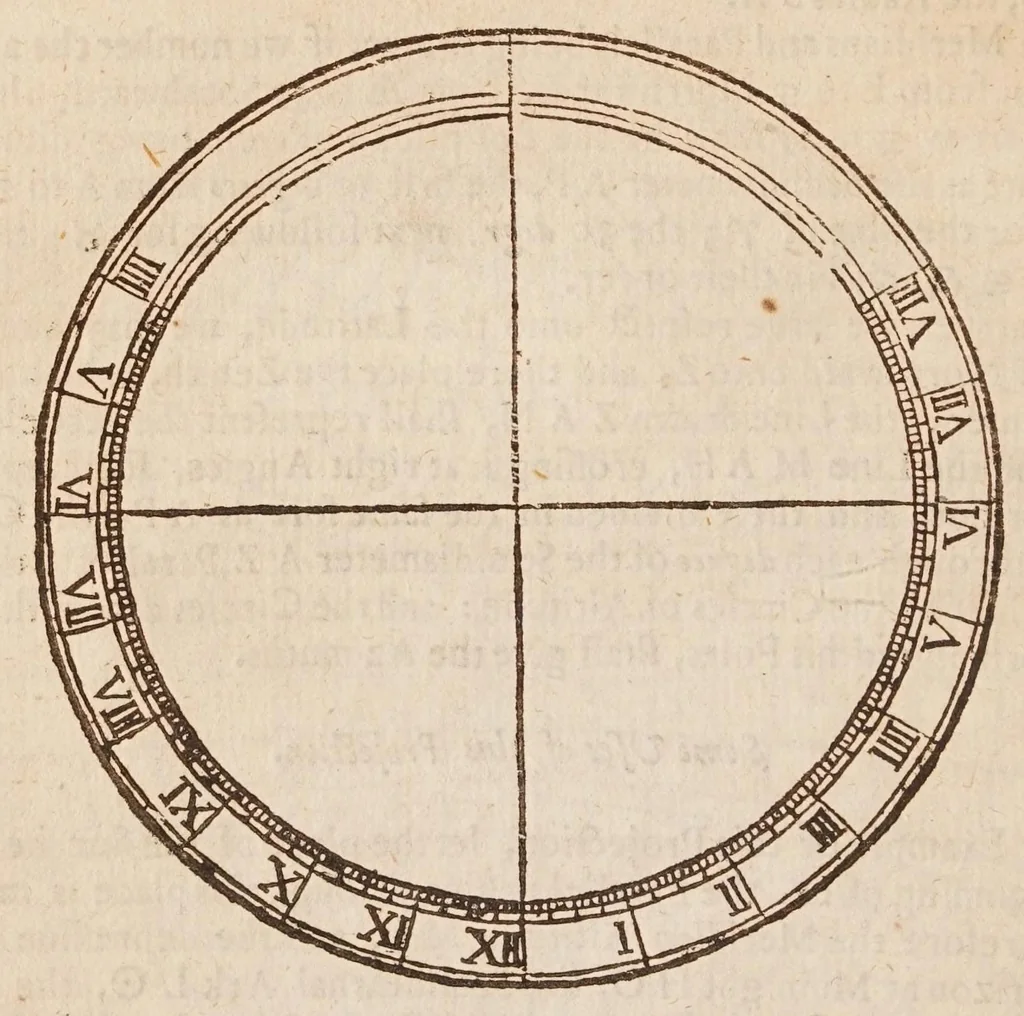

6h Of the Projettion-of the Sphere. intend not here to fhew the Ufe of the Aftrolabe, butthe Ufe of the Seftor in Projection. » a apg And after this manner may a Nofturnal be projefted to thew the Hour of the Night, whereof I willfet down a Type for the ufe of Seamen. he Ob | | . … Ie confifts, as you fee, of two parts, the one isa Plane divided equally according to the 24 hours of the day, and each hour into quar- ters or minutes, asthe Plane will bear: the Line from the Center to XII, flands for the Meridian, and XII ftands for the hour of 12 a¢ midnight. The other part is…
