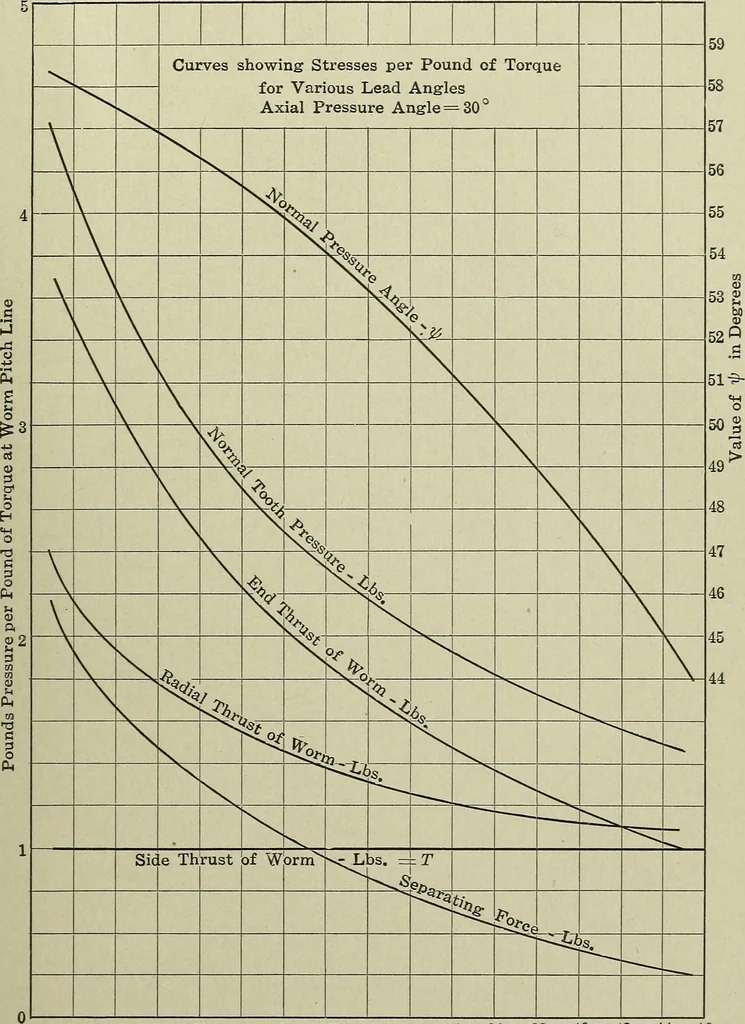

work absorbedin tooth and bearing friction in the transmission gears) p isgreater than the torque of the motor itself, by the amount of thegear ratio in operation. We are now in a position to tabulate the complete stressesin worm gearing for any angle of worm gear, and their magni-tude per pound of… … 16 18 2a 22 24 26 28 30 32 34 36 38 40 42 44 46Degrees Lead Angle (X Fig. 19. tion angle has been omitted as being too small to have anypractical value. 46 WORM GEARS Fig. 19 has been plotted from this table, and from it all theintermediate values of different angles of lead may be found.This…
