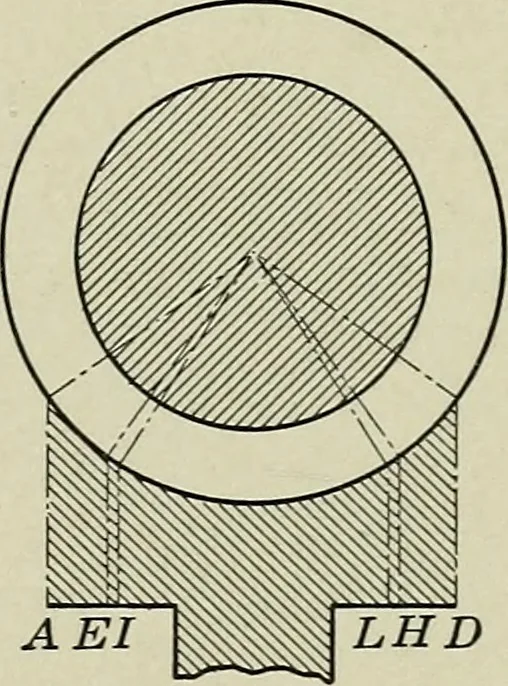

<1—) d 54 WORM GEARS Worm: Number of threads 5 Pitch diameter 3.25 in. Pitch circumference 10.21 in. Length of worm 5 in. Lead 5. 9375 in. Lead angle 30° 11 Thread angle 60° Length of thread per rev 11.812 in. Rubbing speed 18.5 /. p. s. Worm Wheel: No. of teeth 39 Pitch diameter 14.75 in. Pitch… … A EI A EI LHD
