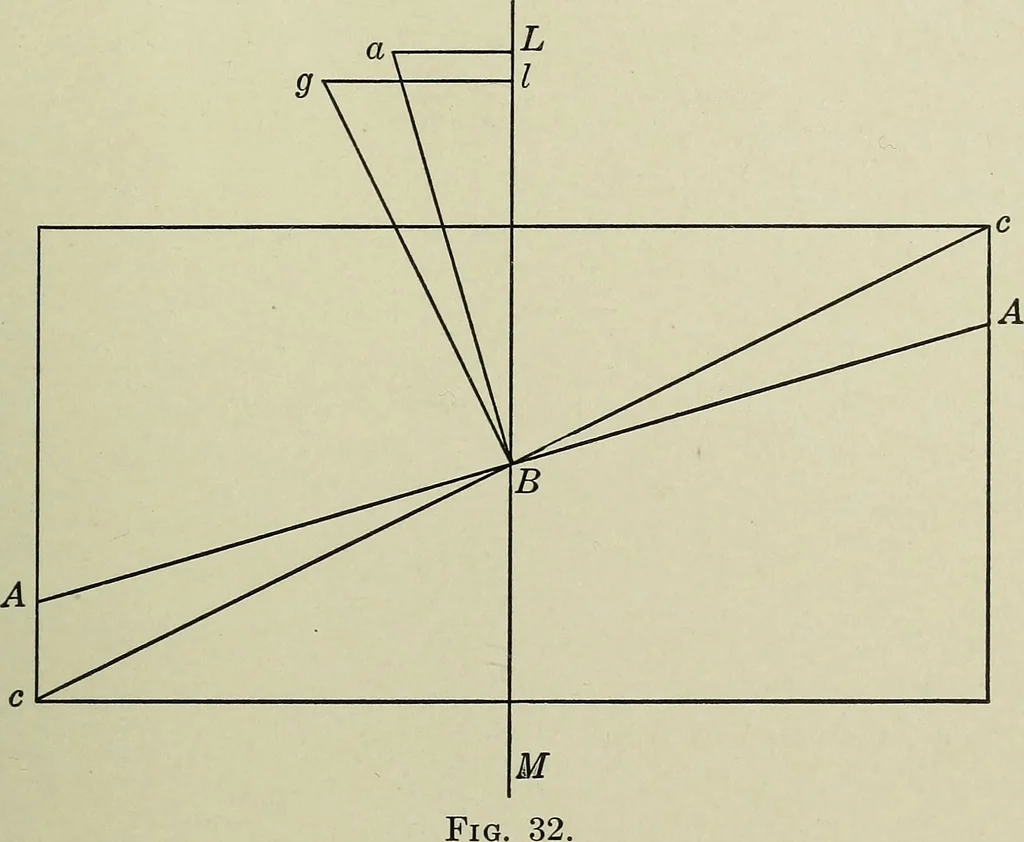

componentincreases with the increasing angle. EFFICIENCY OF WORM GEARING 71 BLa is a right angle triangle, of which LB a is an anglecorresponding to the pitch angle. Ba is the force applied. BL is the useful force. The ratio of these two -^=r- is the cosine Ba of the angle LBa. Up to this point,… … be considered, and it is the effect of the relative motion betweenthe worm and wheel. Thus with a approaching zero valuethe relative motion between the two is very high compared tothe useful motion of the worm wheel; hence much work isdissipated in useless friction. Various formulae have been…
