Wright aircraft engines; complete instructions for their installation, operation and maintenance; (1921)
Wright Aeronautical Corporation, Cautley, John R., ed · Paterson, N.J., Wright aeronautical corporation · leaf 30

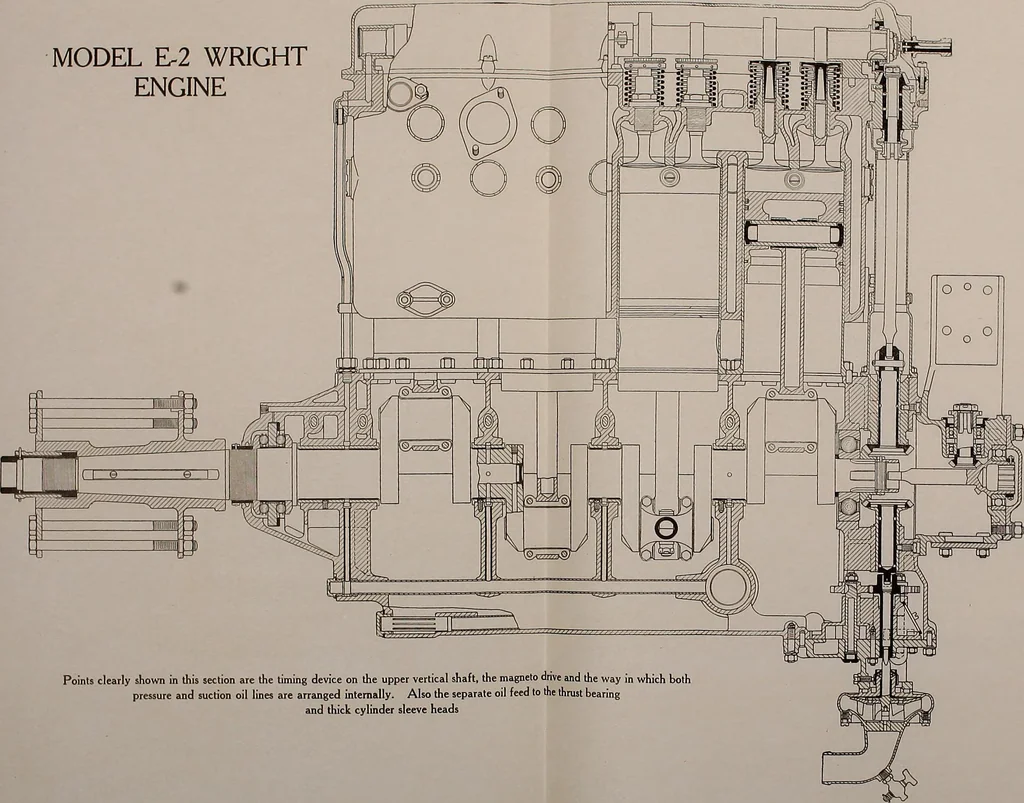

Showing the inclined magneto position and also the oil strainersand pressure release valve . -1 ■ MODEL E-2 WRIGHTENGINE … Points clearly shown in this section ate the timing device on the upper vertical shaft, the magneto drive and the way in which bopressure and suction oil lines are arranged internally. Also the separate oil feed to the thrust bearingand thick cylinder sleeve heads ; ■■- MODEL E and IWRIGHT ENGINE
