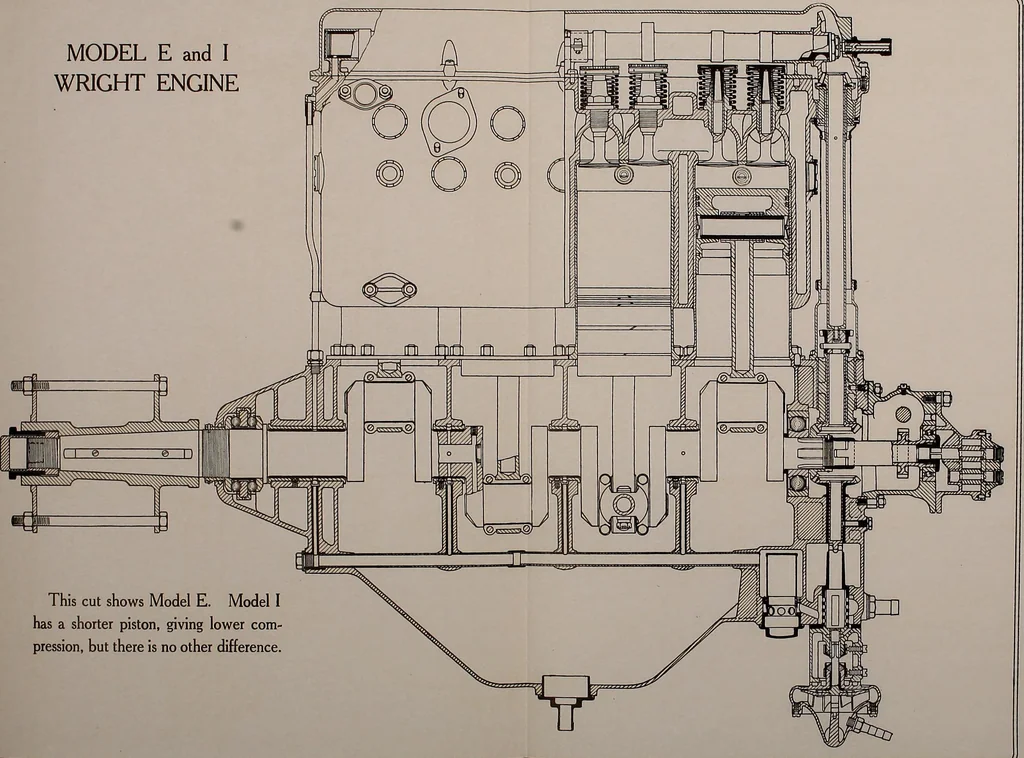

Points clearly shown in this section ate the timing device on the upper vertical shaft, the magneto drive and the way in which bopressure and suction oil lines are arranged internally. Also the separate oil feed to the thrust bearingand thick cylinder sleeve heads ; ■■- MODEL E and IWRIGHT ENGINE … This cut shows Model E. Model Ihas a shorter piston, giving lower com-pression, but there is no other difference. WRIGHT AERONAUTICAL ENGINES 13 The general circulation outward from the feed sideof the pressure pump is the same for all models with thedifference that model A has: 1. No feed to the…
