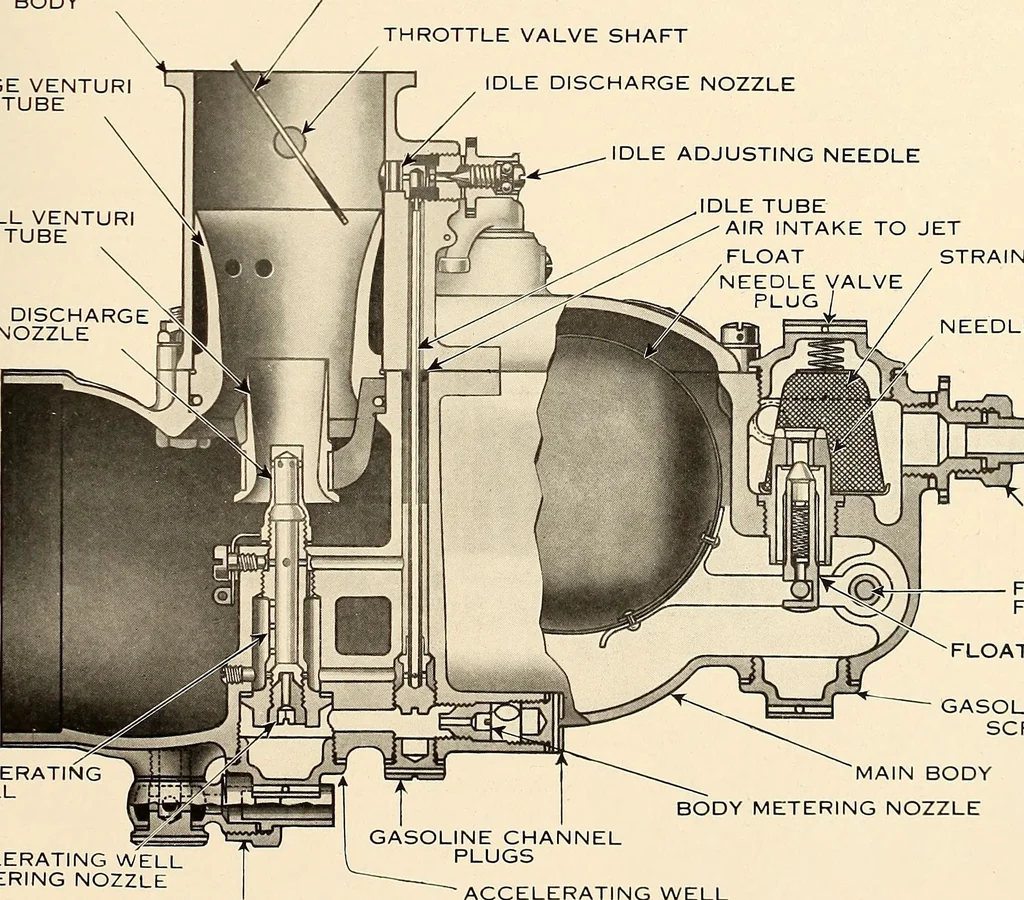

ndrical chamber. Gasoline enters the nozzle fromthe bottom, passing through a small hole in a plug calledthe acceleration metering nozzle, which will be referredto again later. In the tube which forms the main discharge nozzlethere are a few large holes at the top, forming the dis- THROTTLE… … NEEDLE VALVE SEAT 3 GASOLINECONNECTION FLOAT LEVERFULCRUM SCREW FLOAT NEEDLE VALVE GASOLINE CHAMBERSCREW PLUG ACCELERATINGWELL ACCELERATING WELLMETERING NOZZLE MAIN BODY BOI . Ml i ! RING NOZZLE GASOLINE CHANNELPLUGS ACCELERATING WELLSCREW PLUG AIR HORN DRAIN CONNECTION Sectional diagram of…
