Wright aircraft engines; complete instructions for their installation, operation and maintenance; (1921)
Wright Aeronautical Corporation, Cautley, John R., ed · Paterson, N.J., Wright aeronautical corporation · leaf 56

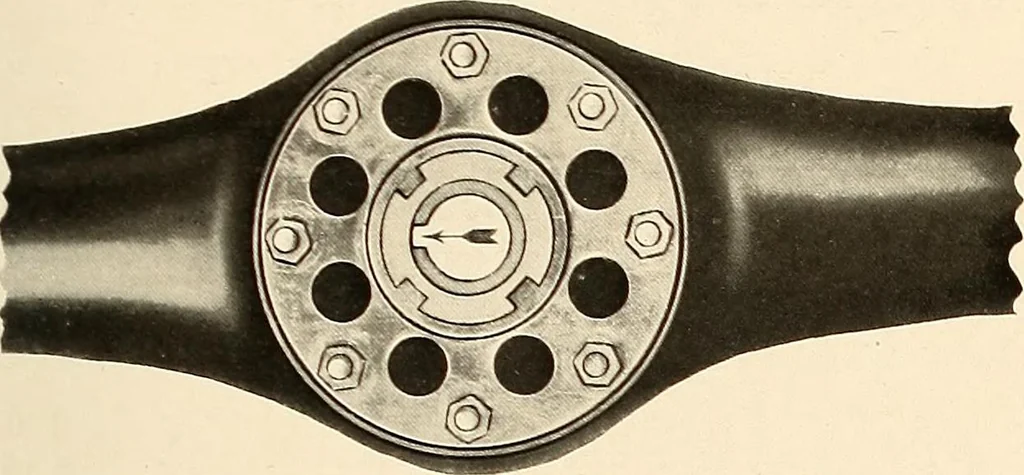

Use of hub wrench PROPELLER ATTACHMENT Instructions for Care of Propeller Hubsand Mounting Propellers in Hubs IN placing a propeller hub in a propeller, always putthe kevwav of the hub in the axis of the blades.Starting the engine by cranking is facilitated if thepropeller is keyed in this position… … Tightening the Hub Nuts I, E, E-2, H, H-2 and H-3 There is one inner propeller hub nut and one outernut holding the propeller hub on the crankshaft, theybeing locked together with a lock wire. To fasten the hub on the crankshaft taper: Using Model A hub wrench Location of keyway in propeller hub…
Airplanes
