Wright aircraft engines; complete instructions for their installation, operation and maintenance; (1921)
Wright Aeronautical Corporation, Cautley, John R., ed · Paterson, N.J., Wright aeronautical corporation · leaf 59

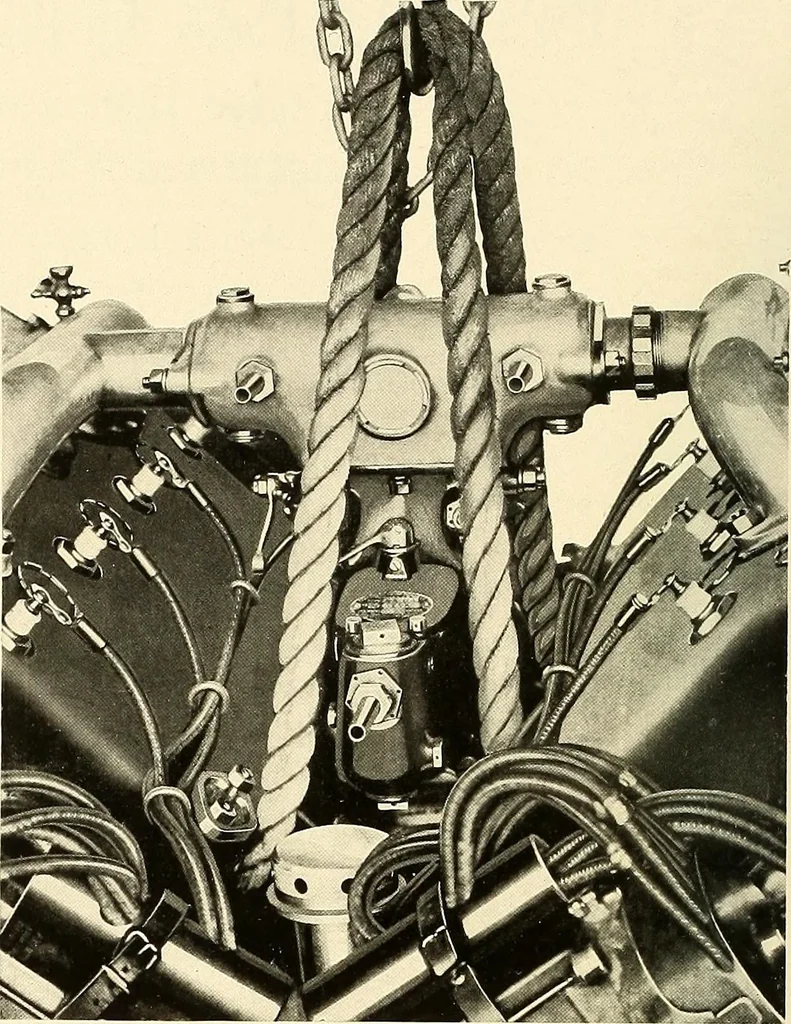

left sideof oil pump) to bottom of oil tank. 2. From suction pump outlet (located on right sideof oil pump) to oil radiator. 3. From oil radiator to top of oil tank. There are two nozzles for hose on the oil pump base,and the copper pipes leading to tank and radiator shouldbe joined by pieces of… … Method of slinging engine Oil Piping, Models E and I On these two models the oil connections are asfollows: 1. From pressure pump intake to bottom of oiltank. 2. From plug in bottom of crankcase to suction(left hand) side of gear pump at extreme rear endof engine. 3. From delivery side of gear pump…
