Wright aircraft engines; complete instructions for their installation, operation and maintenance; (1921)
Wright Aeronautical Corporation, Cautley, John R., ed · Paterson, N.J., Wright aeronautical corporation · leaf 92

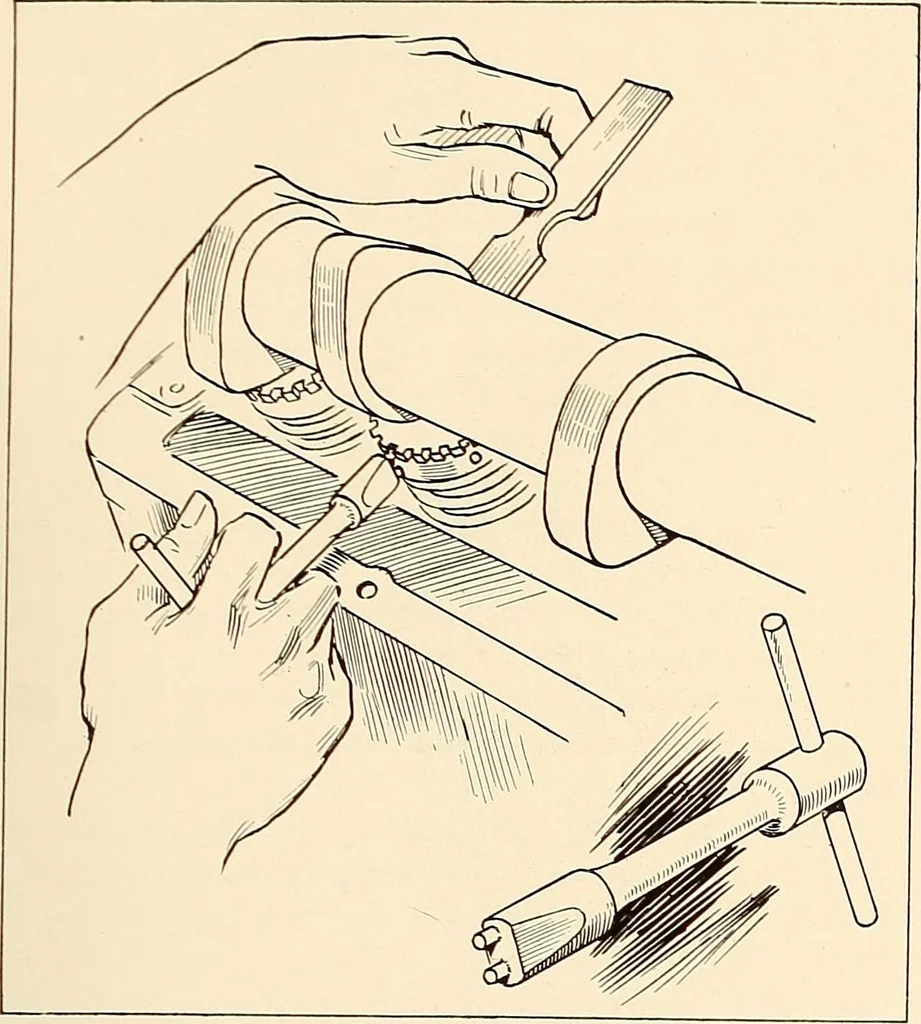

Changing meshing of camshaft gear Now refer to the disk and read off the number ofcrankshaft degrees the shaft is out of time. Note dozvnthis number and also whether the camshaft is early or late. Explanation of Timing Process There are 36 teeth in the camshaft gear, so each toothcorresponds to 10… … Using the tappet adjusting tool and the clearance gauge toobtain proper gap between tappet and back of cam vertical shaft, so a half turn of the vertical shaft causes7y2 teeth movement of the camshaft, or 75 degrees.Therefore, if we lift the camshaft out of mesh, loosen anddrive up the vertical…
