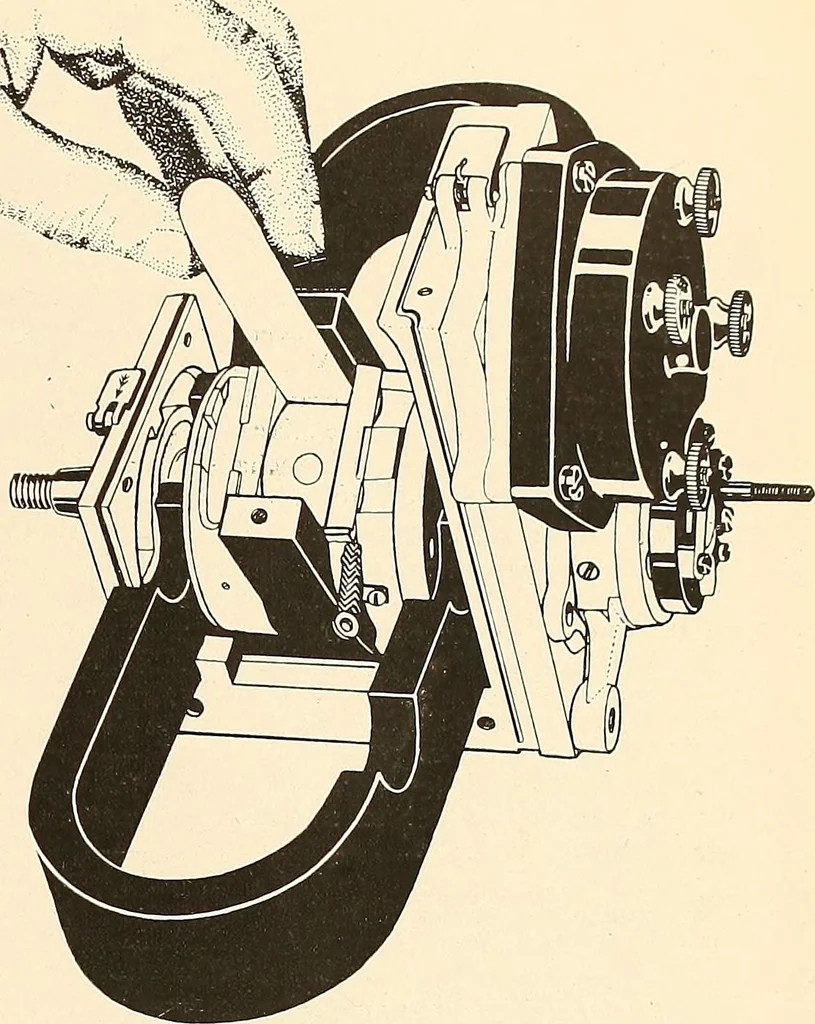

. Examine the platinum points to seethey are free from serious pits, have a smooth contactsurface and are adjusted to 0.018 to 0.022 clearance whenwide open. Reassembly Reassemble rotor shaft and ball bearings in rotorhousing, using extreme care that all parts are entirelyclean and that the ball… … Magneto opened up for inspection. Cut isdiagrammatic only. between the collars on the shaft and between each collarand the opposite front or back plate. Also that therotated member is in the center of the field structure sothat a 0.003 feeler gauge can be passed completely aroundit in any position.…
