X-rays simply explained : a handbook on Röntgen rays in theory and practice (1904)
Howgrave-Graham, Robert Pickersgill, 1880- · London : Percival Marshall & Co · leaf 89

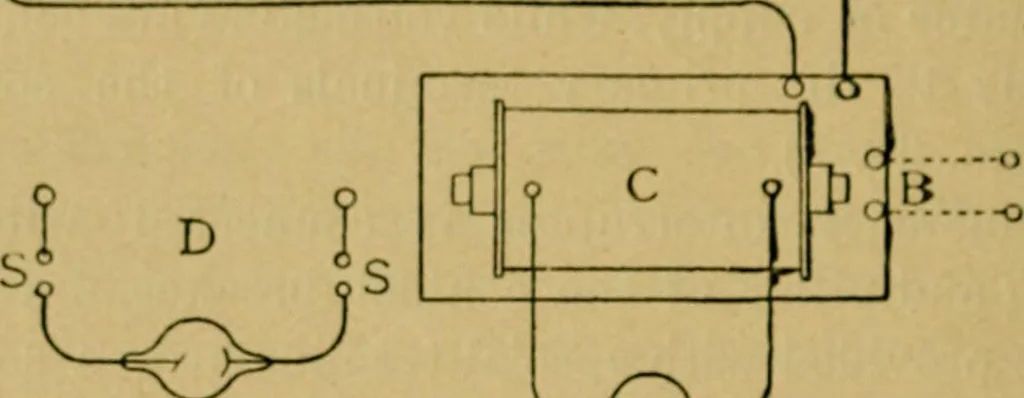

interrupter is ofthe Wehnelt type. If a Wimshurst be used, the two spark-gaps (seep. 84) are connected in series with the tube, one oneither side (see fig. 7, D). It has often been said that radiograplis produced 84 X-UAYS SIMPLY KXII.AINFJ) by inlliUMico iiia(liin(\s arc clraror ihan lIkksc… … ^-€V Fig. 7.—Showing diagrams of connections foi an inductio)icoil and (D) for a Wimsliurst. C. Coil.R. r.roak.A. Amnieler. V. Voltmeter.T. Tube.S. S. Spui k yaps. portant to keep the tube at a con8i(.leral)le distancefrom the coil: Mr Miller recommends 7 feet. Allwires leading to tlie tuhe sliould…
