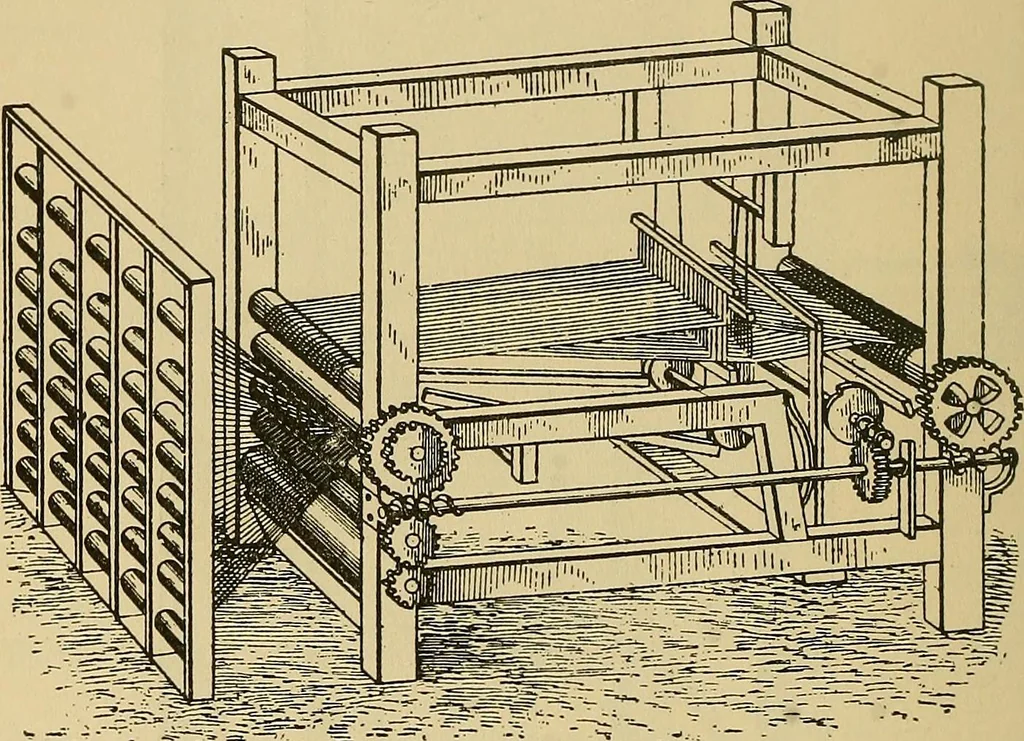

ed mechanically through the long trough-shaped formextending out at the sides. Distinctive Characteristics First weaving machine: a loom run by power and soadjusted that beams, heddles, shuttles and battenwork automatically and in unison. 200 YARN AND CLOTH MAKING Warp devices : cloth and warp… … Fig. 87. — Cartwrights Second Power Loom, 1786 A frame of yam bobbins served in place of a warp beam. The lathe or slayis reversed to oscillate from below. Outline Example : Roberts power loom.Implement — power loom. 1. frame, solid square structure of iron (29, 29e, i). 2. beams. (i) warp beam…
