The young mechanic; containing directions for the use of all kinds of tools, and for the construction of steam engines and mechanical models, including the art of turning in wood and metal (1902)
[Lukin, James] [from old catalog] · New York, London, G. P. Putnam's sons · leaf 105

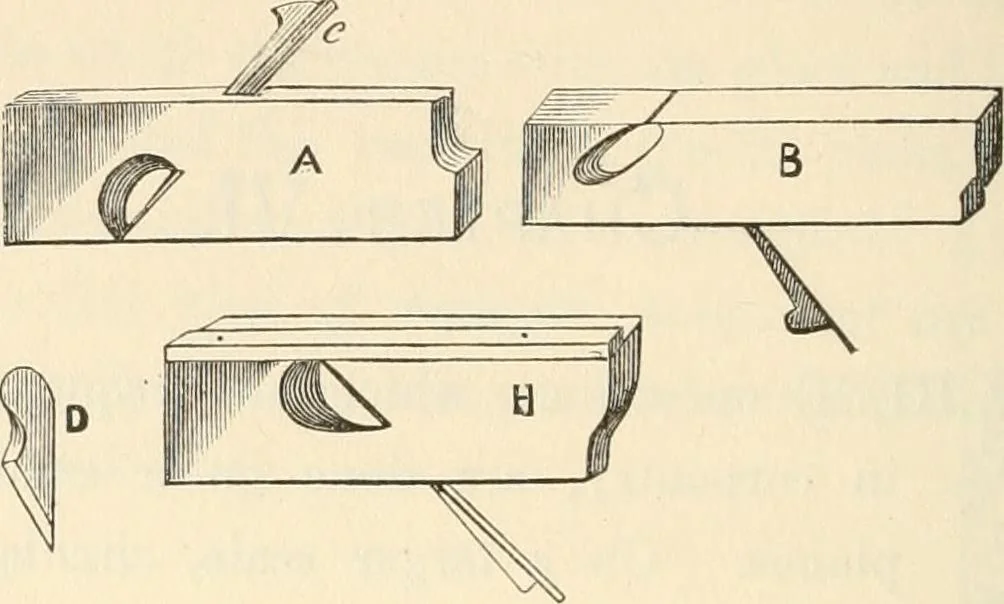

thing-planc, beingmade with a single iron only, which is so arranged as toreach into angular recesses, which could not be touched bythe ordinary plane, of which the iron does not extend quiteto either side of the sole. Fig. 35, A and B, will illustrate 90 THE YOUNG MECHANIC. this. A represents the… … Fig. 35. inch wide and deep. A gauge is first set to the requireddistance, and a line is marked on both faces, as a guide forthe action of the plane. After a little practice it will befound easy to guide the entry of the plane with the lefthand, grasping it so as partly to overlap the sole, and…
