The young mechanic; containing directions for the use of all kinds of tools, and for the construction of steam engines and mechanical models, including the art of turning in wood and metal (1902)

[Lukin, James] [from old catalog] · New York, London, G. P. Putnam's sons · leaf 231

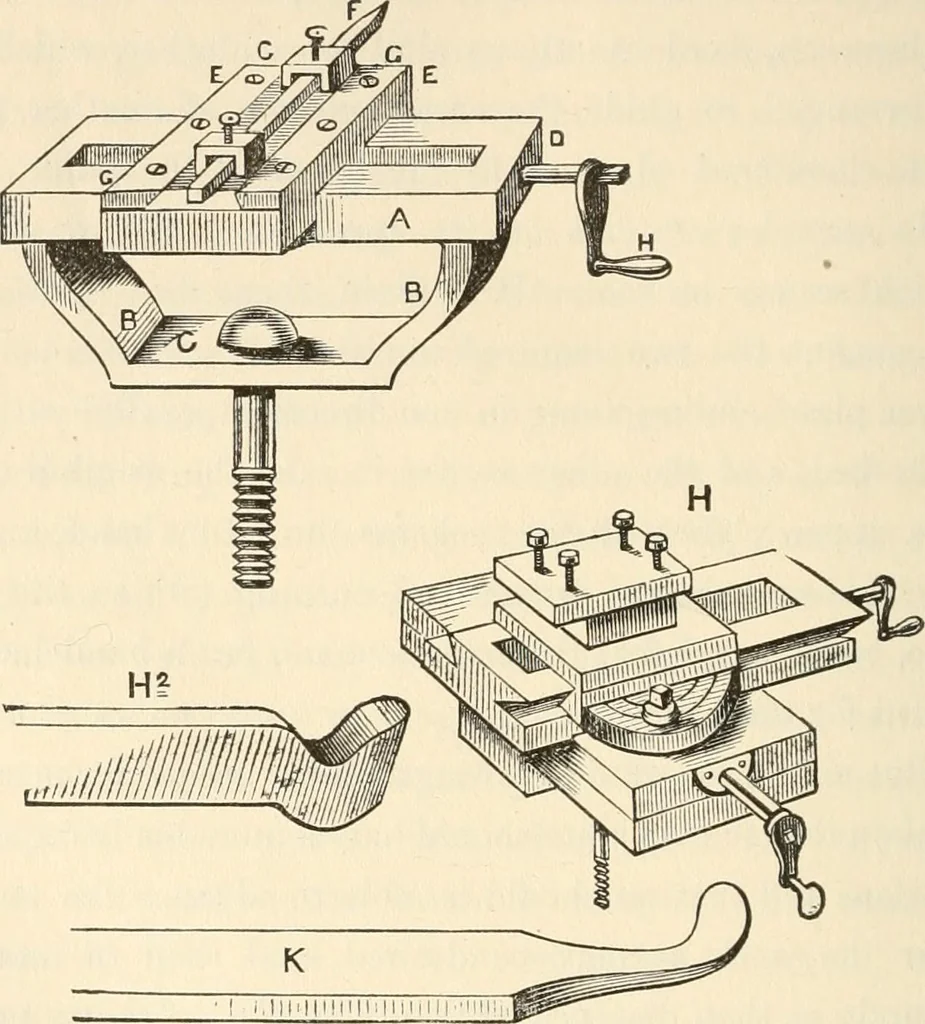

An illustration from The young mechanic; containing directions for the use of all kinds of tools, and for the construction of steam engines and mechanical models, including the art of turning in wood and metal, 1902, leaf 231
retain itsecurely at that distance while giving the necessary movement in the direction of the length of the object to be turned.The method of efiecting this is at once suggested by theBcrew and nut of the lower part, and by merely adding tothe top a similar arrangement, the desired end is at… … rig. 64. lathe-bed, there being a projection below which is made tofit accurately between the bearers similar to that beneaththe poppits. This projection secures the correct positionof the rest, of which one frame or plate will travel length THE SLIDE-REST. 217 wise of the bed, while the other will…
