The young mechanic; containing directions for the use of all kinds of tools, and for the construction of steam engines and mechanical models, including the art of turning in wood and metal (1902)
[Lukin, James] [from old catalog] · New York, London, G. P. Putnam's sons · leaf 323

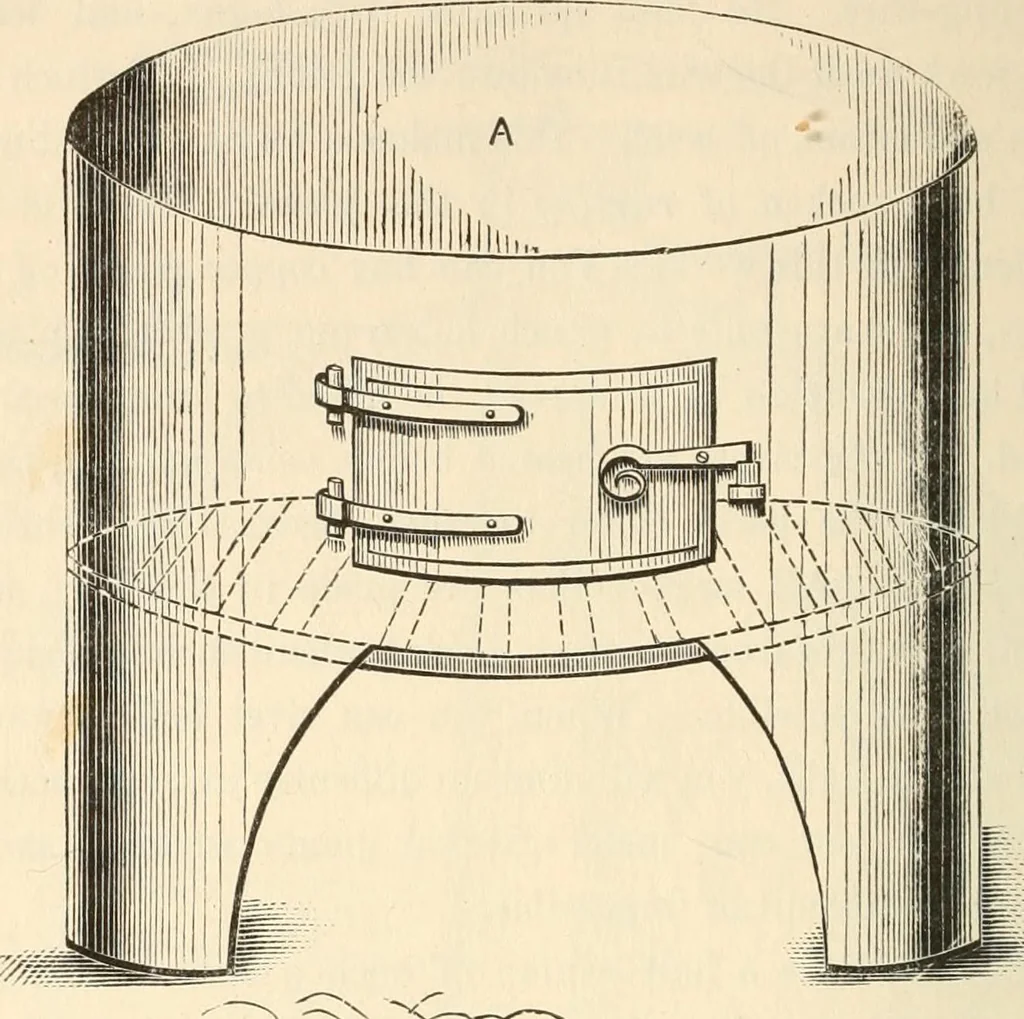

iler stands,fitting it closely. This is drawn to scale, and is half thereal size, a is the steam-pipe, fitted high up in the dome,the iap, h^ serving to turn on or off the supply of steam forthe cylinder; c is the safety-valve shown in section, andcare must be always taken to make the conical part… … \Yi^ / 2
