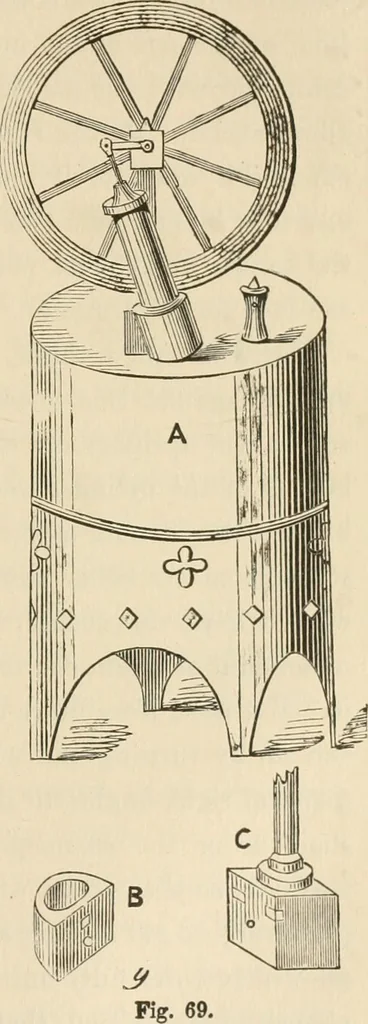

e air. Thisis exactly what is done in prac-tice, and it is managed in thefollowing manner :— B, of Fig. 69, shows thebottom of the cylinder, whichis a solid piece of brass filedquite flat on one side, andturned out to receive the endof the brass tube, which, gener-ally speaking, is screwed intoit… … 3i6 THE YOUNG MECHANIC. trunnion, on which it oscillates. Fig. 69, C, is a similaipiece of brass, which is fixed to the top of the boiler. Inthis, on the left of the upper part, is also a port, which isconnected with the boiler by a hole drilled below it toadmit steam. On the right is also a port,…
