The young mechanic; containing directions for the use of all kinds of tools, and for the construction of steam engines and mechanical models, including the art of turning in wood and metal (1902)
[Lukin, James] [from old catalog] · New York, London, G. P. Putnam's sons · leaf 66

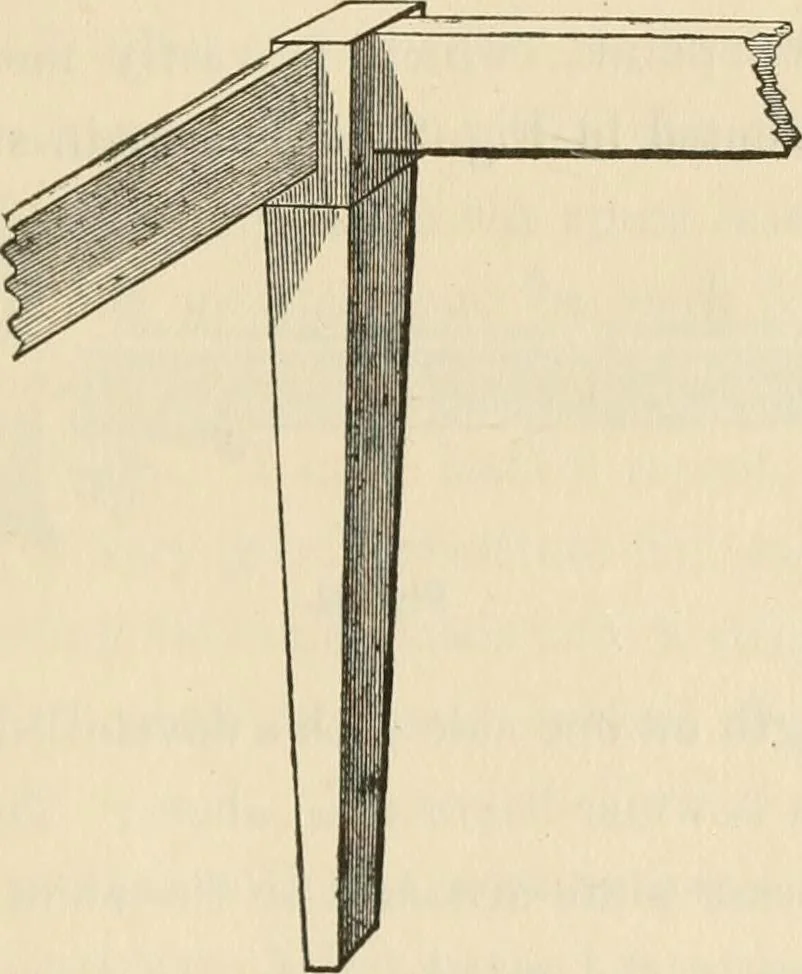

d that will plane to half an inch. Let this be4 inches wide and 9 feet long, and be sure to plane thisalso truly, and to make the edges square to the sides. If you have no strip that will answer of 9 feet long, youcan cut two or more instead, remembering that you willrequire two pieces each 18… … Fig. 23. may proceed to cut the requisite mortices in the legs, whichyou will understand by sketch Fig. 23, which representsone corner of the table before the top is added. There is s« THE YOUNG MECHANIC. no more difficulty in this than in the previous work, exceptperhaps that somewhat more care is…
