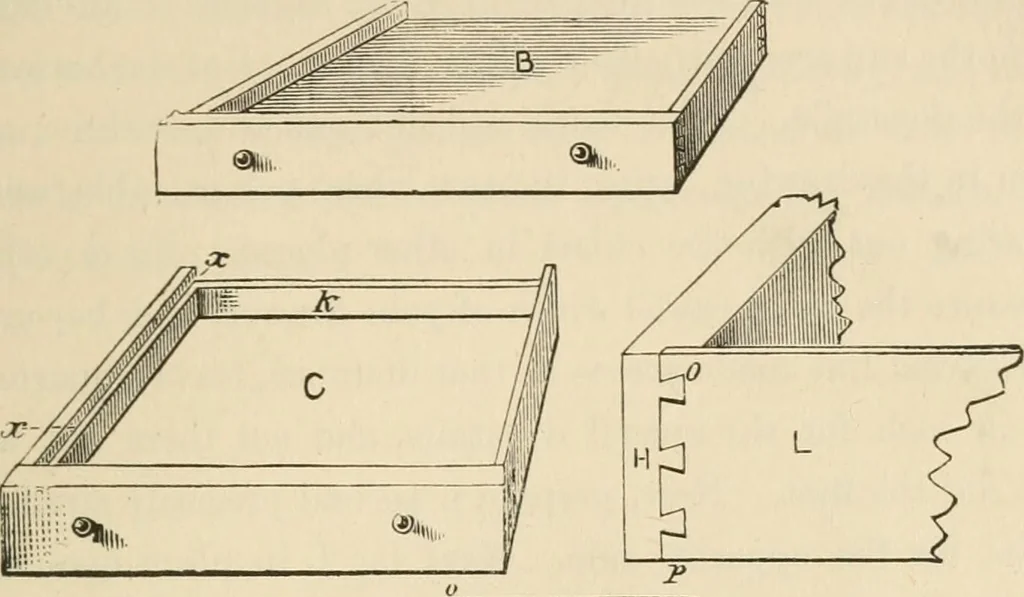

ogether, andwhen it is glued and dry, the bottom is slid in along thegrooves in the sides (one of which is seen at x x), and acouple of brads driven through it into the back rail, K,fixes it completely. The front board of the drawer is cutand planed to fit exactly between the two rails which were… … ifi i f i|i / !j > >> V Fig. 28. If you look at C, you will observe that the front andsides of the drawer are of the same depth, and that onlythe back is narrower. (Remember that in this cut thedrawer is seen from below, the groove x x being near thebottom of the sides, and level with the…
