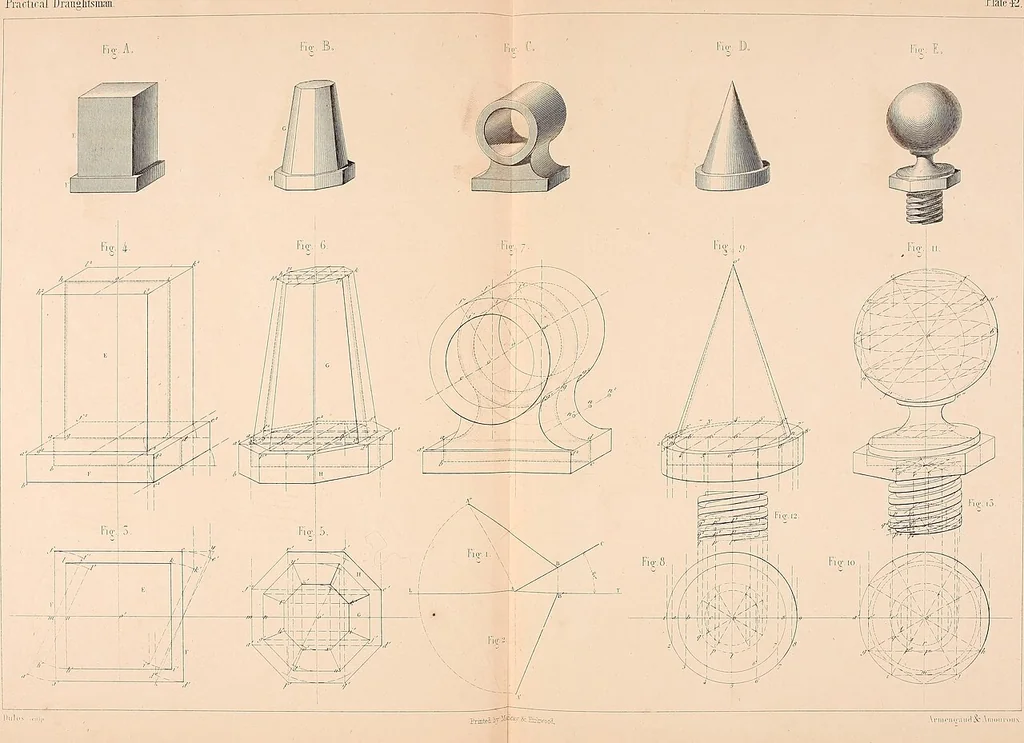

semicircle, agb,is represented by a portion of an ellipse, having the horizontalline, a464, corresponding to a b; and the vertical, g o2, being theperspective of g o. The circle, ah b g, the horizontal projectionof the surface of the uppermost flange, is represented in the per-spective view by a… … Practical Draughtsman. Plate 43.
