Mechanical drawing problems for high schools, normal schools and vocational schools (1918)
Berg, Edward. [from old catalog], Kronquist, Emil F. (Emil Fritjoff), b. 1882 · Peoria, Ill. : The Manual arts press · leaf 178

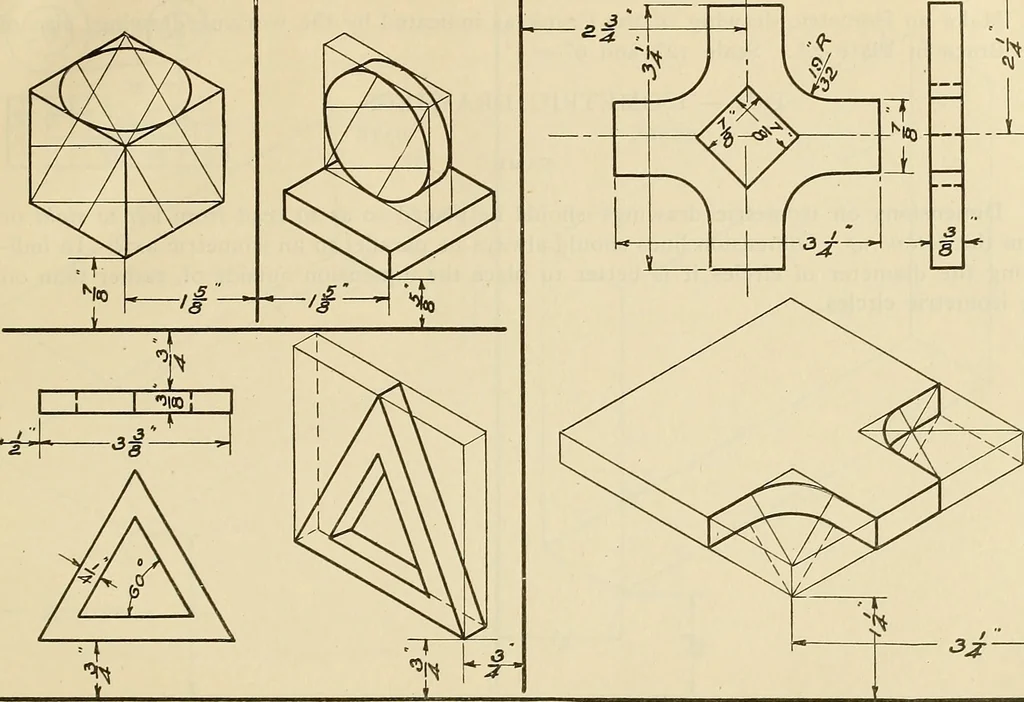

drawing and the isometric drawing. Scale I2=i. Title:— ISOMETRIC DRAWINGS SCALE DATE NAME Isometric Drawing. Isometric drawing is a mechanical method of pictorial representation. It is used torepresent a complete picture of an object in one view, showing the three dimensions ofheight, width, and… … 176 MECHANICAL DRA\\IXG PROBLEMS Specification—Plate 47A, Make an isometric drawing of the Crank as indicated by the working drawing; also ofthe Brace in Plate 7A. Scale 12 and 9= i Title:— ISOMETRIC DRAWINGS SCALE DATE NAME Dimensions on isometric drawings should be placed so as to read from left…
Mechanical drawing
