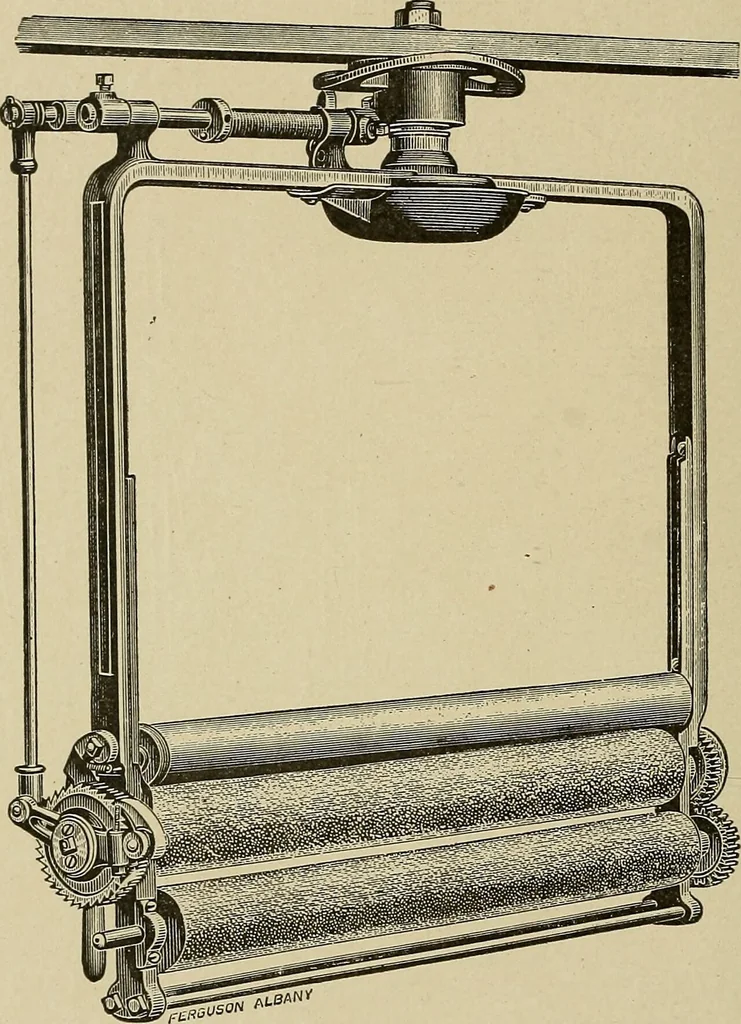

Fig. 18. Take-Up and Parts. bottom of the frame. The spreader bow is supported and rotatedby the vertical shaft. The weight of the take-up is supported bya hardened rounded steel collar (not shown in the cut) seated in ahardened steel cup, 5. This is sufficiently free to allow the take-up to move… … Take-Up, Outside Drive. the cloth while being knitted, and is a most important factor inproducing good cloth with a minimum of broken needles, detaildrawing is given in this, diagram. The crank connection 32, is attached to the upper end of theconnecting rod 31 ; on the other connecting rod 31, is…
