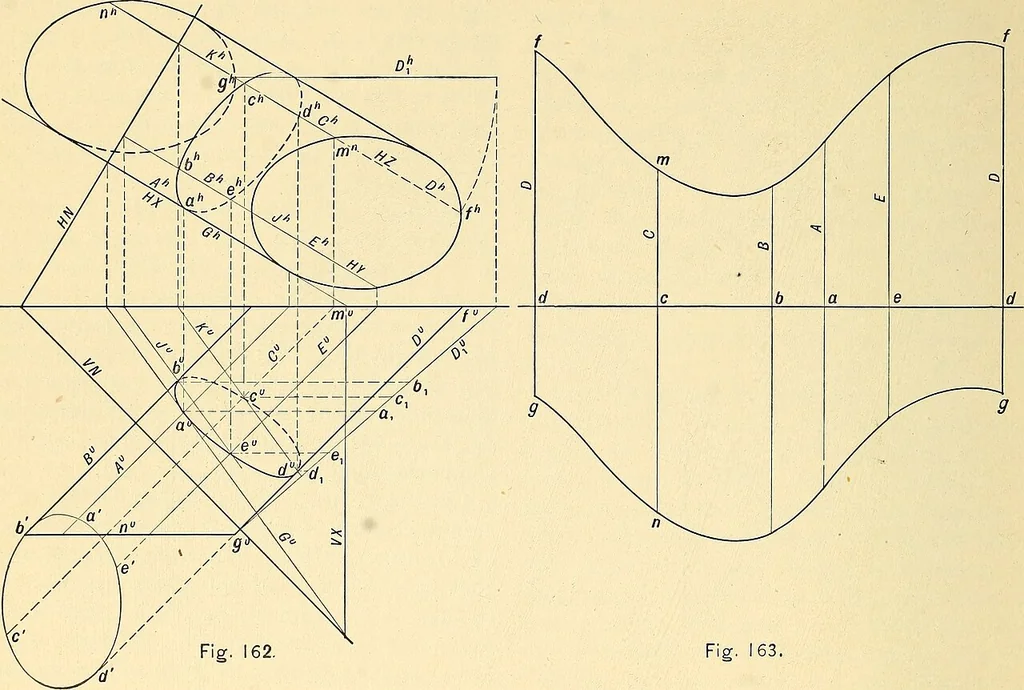

he elements will be per-pendicular to it. The ends of these perpen-diculars will be at a distance from the lineequal to the true distances of the ends of theelements from the right section. A smoothcurve may then be drawn through the ends ofthe perpendiculars. Method. 1. Draw a right line equal… … 1 Fig. 163. DEVELOPMENT OF CYLINDER 91 length Dj, and d is projected to c?^, thus ob-taining the true lengths of each portion of D.Since all the elements of a cylinder are ofthe same length, D^ represents the true lengthof each element, and their segments are ob-tained by projecting the various…
