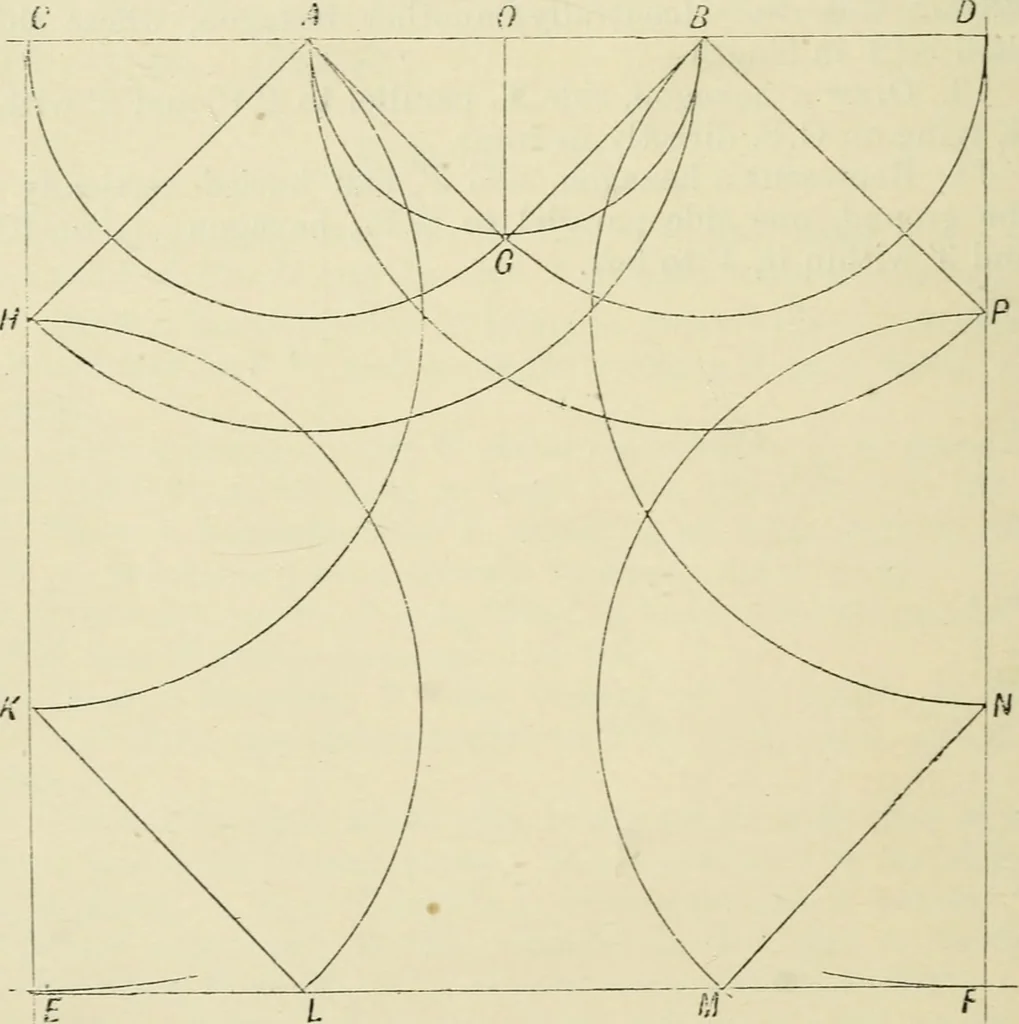

in this draw (centrally) another hexagon, whose sidesshall be 2 in length. 13. Draw a hexagon, side 2, parallel to P.P. and 2 withinit, lying on G.P. directly in front. 14. Represent a hexagon, side 3, half buried vertically in.the ground, one side parallel to G.P.; hexagon _|_ to P.P.and 3 within… … Fisr. 31. Let AB = given side (on B.L.) ; bisect AB in O. and drawOG _L to OA and equal it, and describe semicircle AGE ; THE OCTAGON 55 join AG and GB : with centres A, B, and distances equal toAG, describe arcs to cut AB produced in C and D ; on CDdescribe square CDFE. With centre A and distance…
