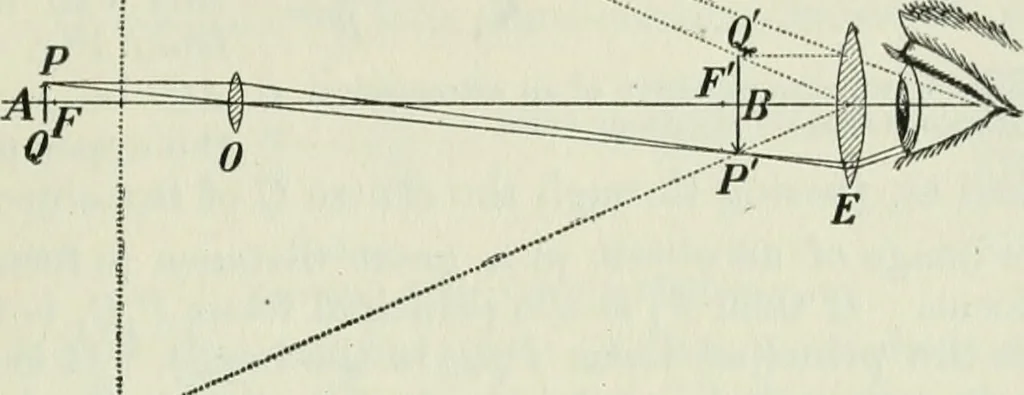

beobtained is about 100. 416. The Compound Microscope. For hlglier magnifications we must use a combination of convex lenses known as a compoundmicroscope. In its simplest form it consists of two lenses, theobjective and the eyepiece, the action of which is illustrated inFig. 433. THE ASTRONOMICAL… … which --^ (see i .389). Fig. 433.—Diagram illustrating the compound microscope. just within its focal length. The eyepiece E then acts as a simplemicroscope magnifying PQ. It forms an enlarged virtual imagepq at the distance of distinct vision from the eye. This distanceis approximately the length…
