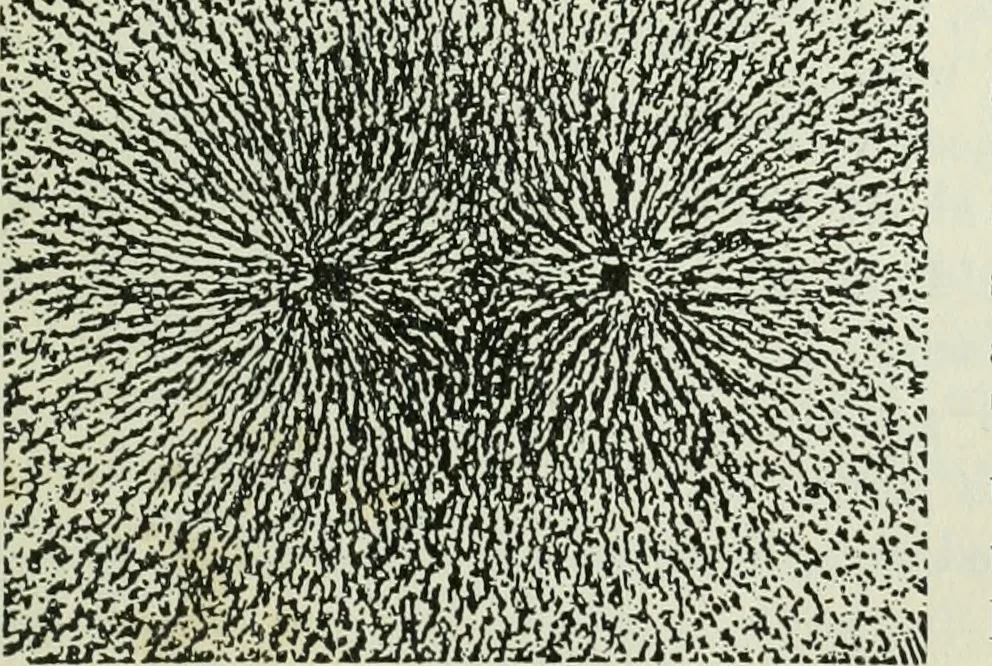

the fieldabout a bar-magnet,while Fig. 452 shows it about similar poles of two bar-magnets .-,.^ ■ standins: on end. The magnetic force,as we have seen, isgreatest in the neigh-bourhood of the poles,and here the curvesshown by the filingsare closest together.Thus the direction of… … Fig. 452.—Field of force of two unlike poles. 372 MAGNETISM There are several ways of makiug these filings figures per-manent. Some photographic process gives the best results, but aconvenient way is to produce the figures on paper which has beendipped in melted parafiin, and then to heat the…
