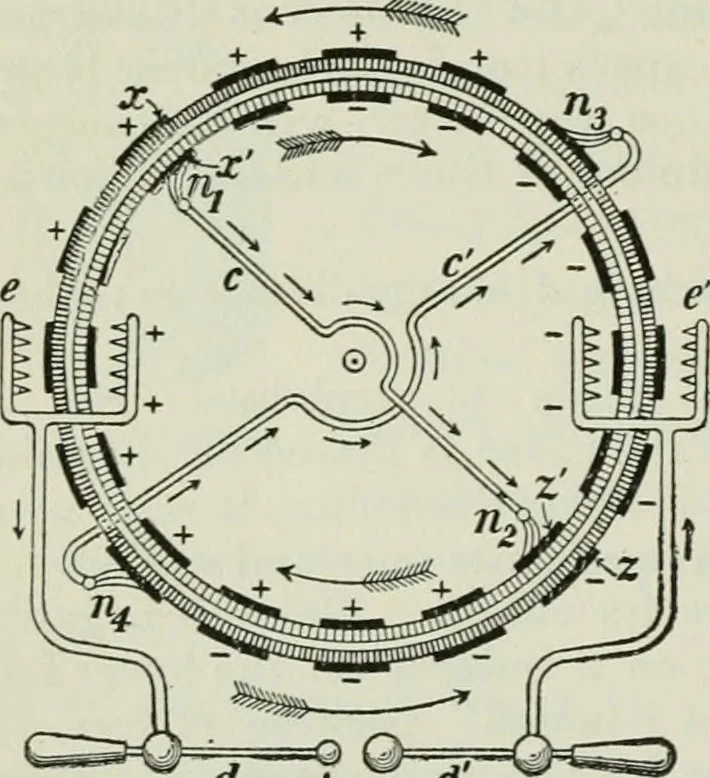

r x on theback plate at the moment when this is in contact with the brushUy This latter sector then acquires by influence a negative charge,the sector z at the other end of c receiving a positive charge whilethe sector z opposite it, on the other plate, receives by influence anegative charge. As… … Fig. 480.—Diagram of a Wimshurst machine. *Thi8 method of explanation is due to Prof. S. P. Thompson ; see his Elementary Lessons inElectricity and Magnetism, p. 63. EXPLANATION OF THE ACTION OF THE MACHINE 395 Again, the negative charge on x and the positive charge on zare brought opposite n.,^…
