Merchant, F. W. (Francis Walter), 1855-1937, Chant, Clarence Augustus, 1865-1956 · Toronto : Copp Clark · leaf 88

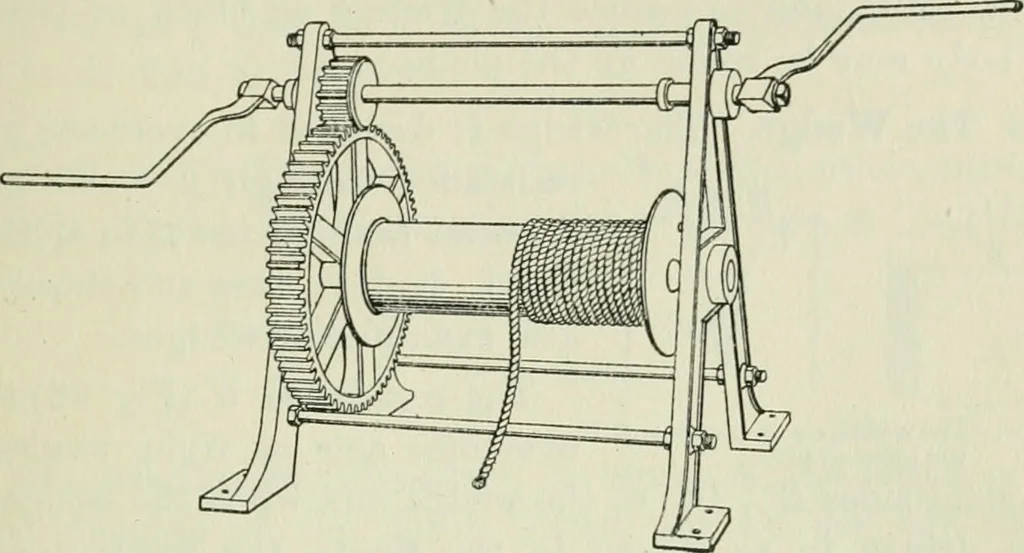

THE INCLINED PLANE 77 PROBLEMS1. A man weighing IGO pounds is drawn up out of a well by means of awindlass, the axle of which is 8 inches in diameter, and the crank 24inches long. Find the force required to be applied to the handle. … Fig. 94.—Windlass, witli geariny, such as is ustU with a pile-driver. 2. Calculate the mechanical advantage of the windlass shown in Fig.94. The length of the crank is IG inches, the small wheel has 12 teethand the large one 120, and the diameter uf the drum about which the ropeis wound is 6…
Physics
Internet Archive · Western University Libraries · Public Domain Mark 1.0. Free to use for anything.
