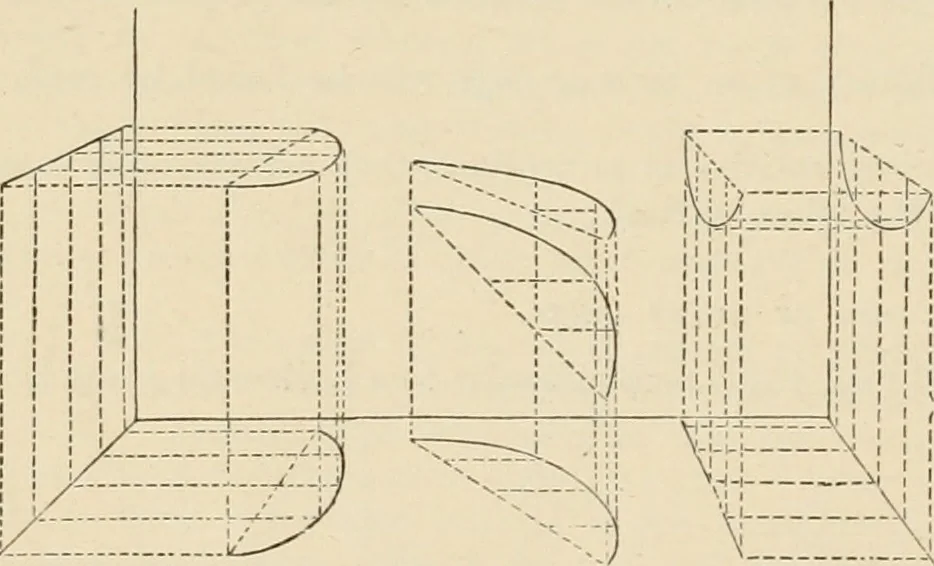

Fig. 465. PROJECTION OF CURVED LINES. 1137. Curved lines not having their points in the same direction occupy a space whichbrings them imder the laws of those of surfaces. The projection of a curve on a planeparallel to the surface in which it lies (Jig. 464.) is similar to the curve.
