An illustration from An encyclopaedia of architecture, historical, theoretical, & practical. New ed., rev., portions rewritten, and with additions by Wyatt Papworth, 1888, leaf 617

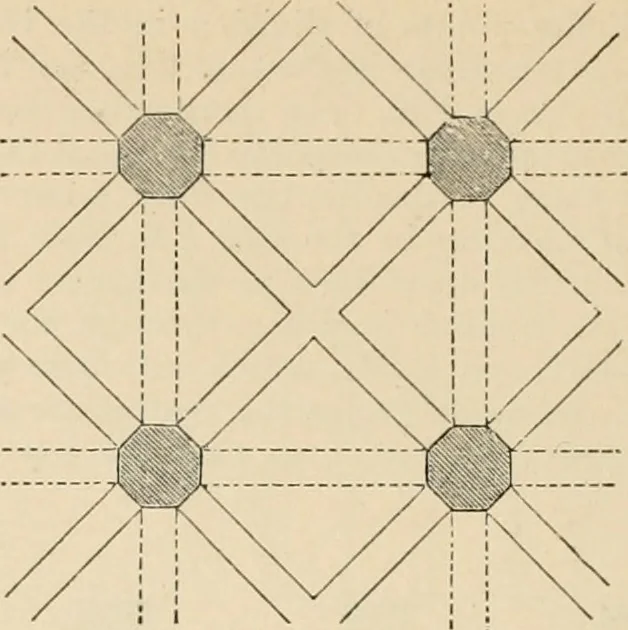

FiR. 611. I 954. Where the piers supporting groins (fff-64i.) are made octangular, tlie angles of thegroins slioiilcl be cut oft or arched as ribs, bywhich they are rendered much stronger thanwhen they are square. In stone groins, wherethe arch is cut oft, there is no advantage in pointof strength,…
