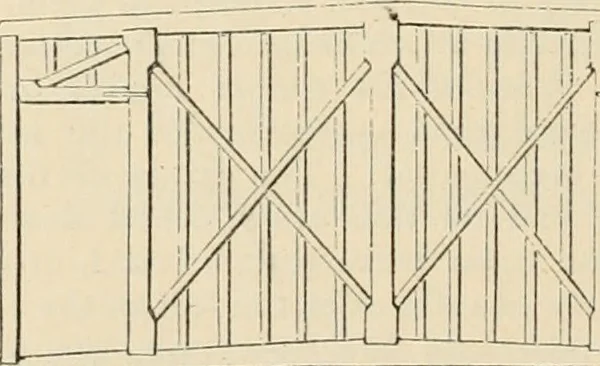

the timbers of a (juarter iiartition should vary according to the extentof bearing. Where that does not exceed JO feet, 4 by 3 inches will l)e sufticient ; and whereit is as much as 40 feet, the (juarters should not be under 6 by 4 inches, that is, supposingit to bear only its own weight. When it… … of it: in which hh is the head, and AA the sill; t/c, c?c the doorposts; <7.</the iiitertie,Ad, Afi the braces; fd, /c/struts. Fig. 679. shows a method of trussing a partition inwhich the doors are at the sides. It is obvious that additional strength may also be gained,when wanted, by…
