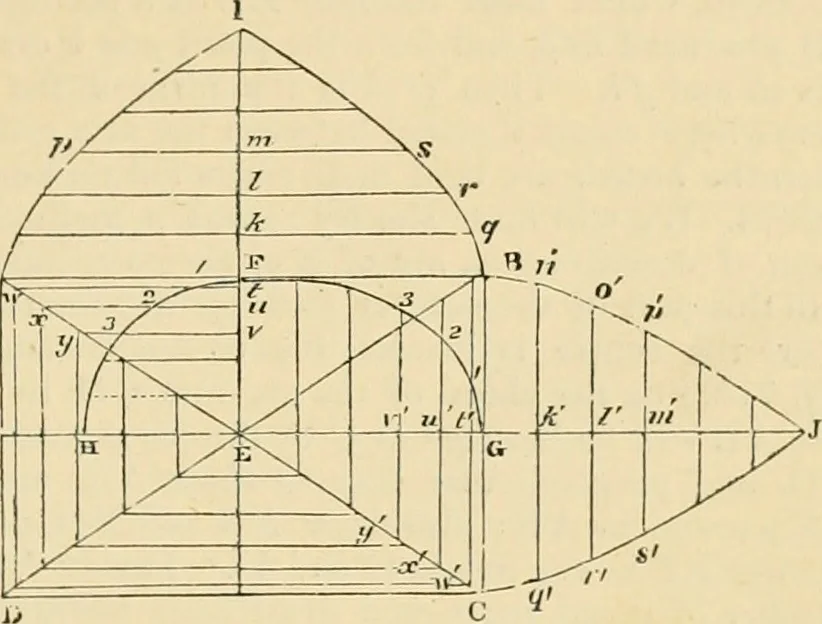

Chap. III. CARPENTRY. 64? … {fig. 714.), the plan being ABCDEFGII. Let i be tlie centre of the circle in wliicli theoctagon may be inscribed. Draw the half diagonal jA, (B, iC perpendicular to any sideAH of the plan. Draw the straight line ih, cutting AB in h. Let lilmZ be the outline ofone of the ribs of the dome, which is…
