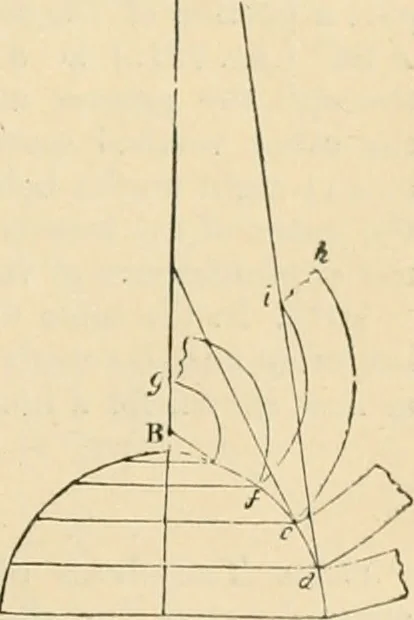

C into the e(piidistant arcs Al, 12, 23, and through the pointsof division draw the lines ](/, 2h, 3i perpendicular to AB cuttingFi F at t/hi and DF at k/m. Produce FE to V and extend the arcsAl, 12, 23 upon the straight line EV from E successively tothe points opq. Through the points opq draw the… … Fig. 717. C44 THEORY OF ARCHITECTURE. Bor>K IT.
