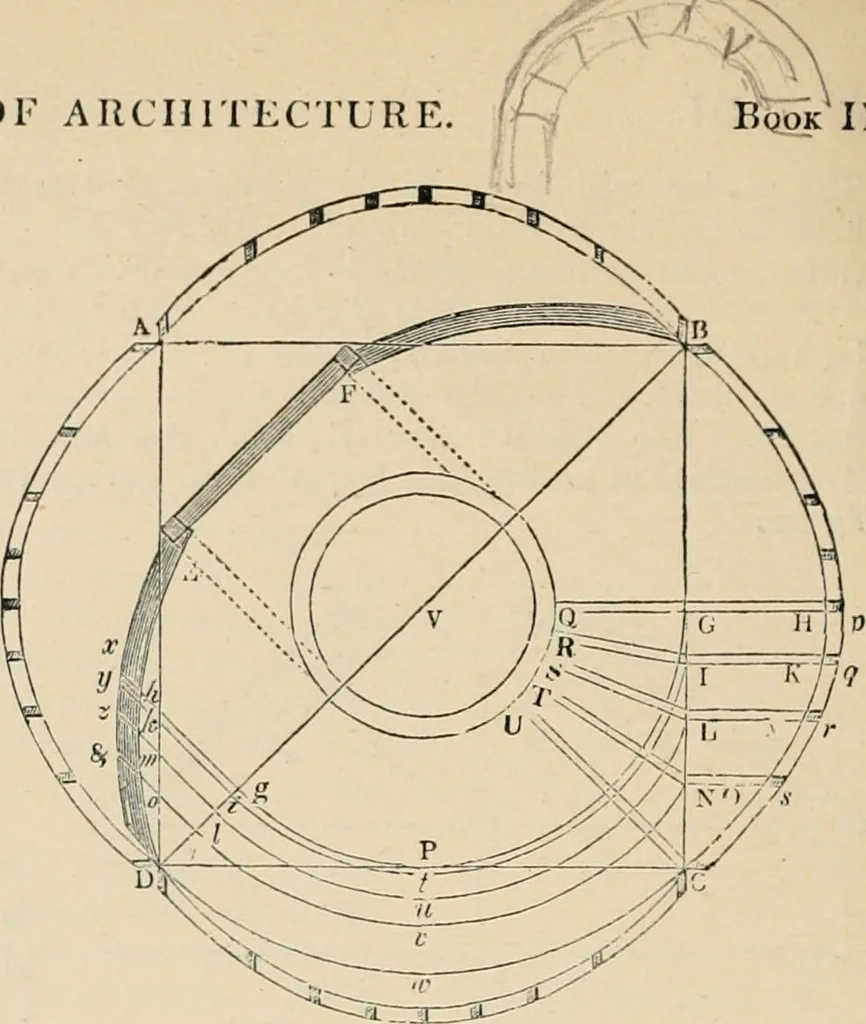

648 THEORY OF ARCIIITKCTURE Bqpk II, … ting the base DB of the angular ribin g, i, I, and ji. Draw gh, ik, Im, andno, each perpendicular to DB, cuttingthe diagonal rib at /(, h, m, and o. Thenmaking the distances GH, IK, liM,and NO equal to the correspondingdistances gfi, ik, Im, and no, throughthe jjoints H, K, M, O draw a curvewliich…
