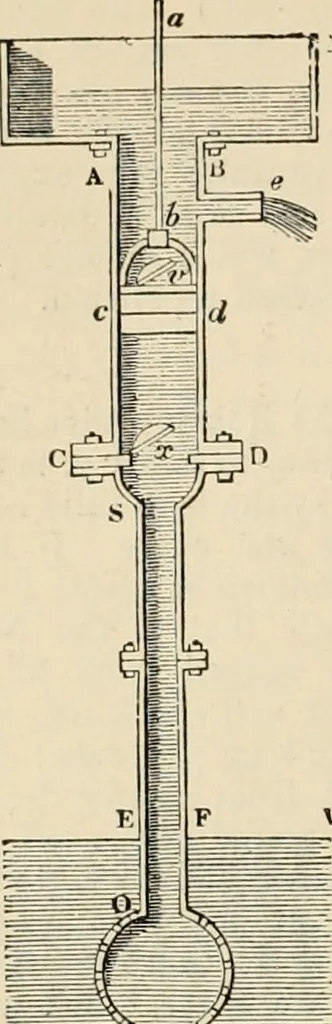

1 1 j \ , ■„:1 \ ci i. / i V A u Vr, . i 1 Fig. 8 4. 684 THEOKY OF ARCHITECTUEE. Book II. … acts as a great syringe, and in which works a piston ci, worked by the piston rod ab,having a valve at v, also opening upwards. The piston is worked alternately upwardsand downwards in common pumps by a lever called the brake,but it may be worked in many ways. In the figure, W isthe level of the…
