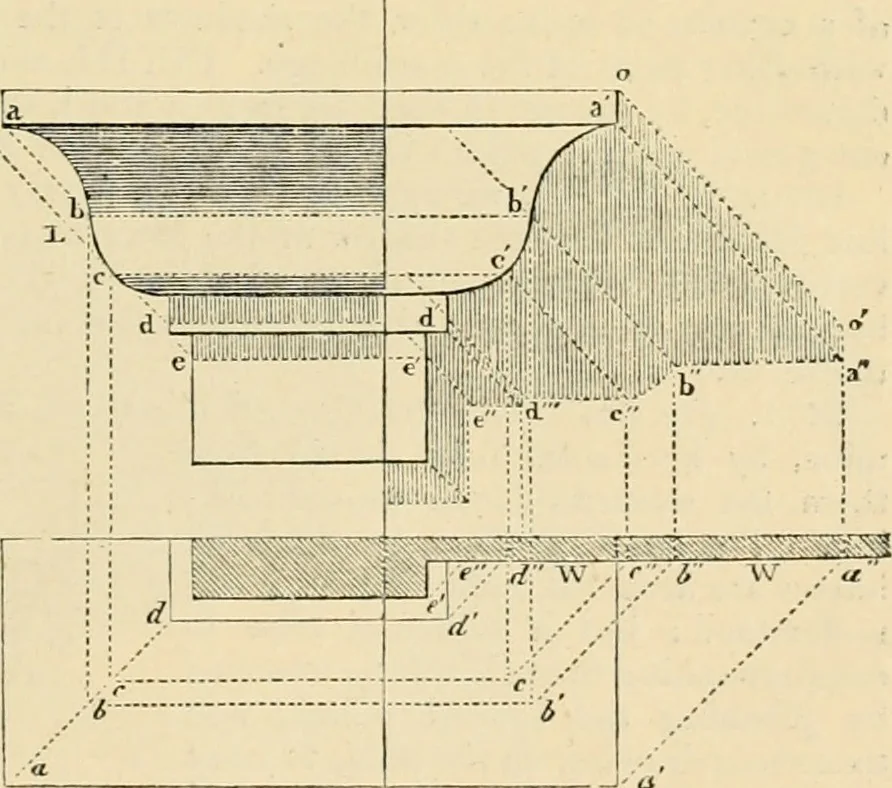

e, b , and a, we have the form of the shadow in elevation. The part from b to c of the cyma being in light, itsshadow will be the curve c b, wherein, if it be required on a large scale, any numberof pomts may be taken to determine its form by means of correspondent points on the planas for the… … S28 THEORY OF ARCHITECTURE. Book II. corresponds with ab on the plan, as do the pointsE, F, G, H with efgh, from which verticals deter-mine them in the elevation. The projection of theplinth on the lower step is found by KJ and acorresponding line and vertical, which, to preventconfusion, is not…
