The mathematical theory of electricity and magnetism (1911)
Jeans, James Hopwood, Sir, 1877-1946 · Cambridge [Eng.] : University Press · leaf 284

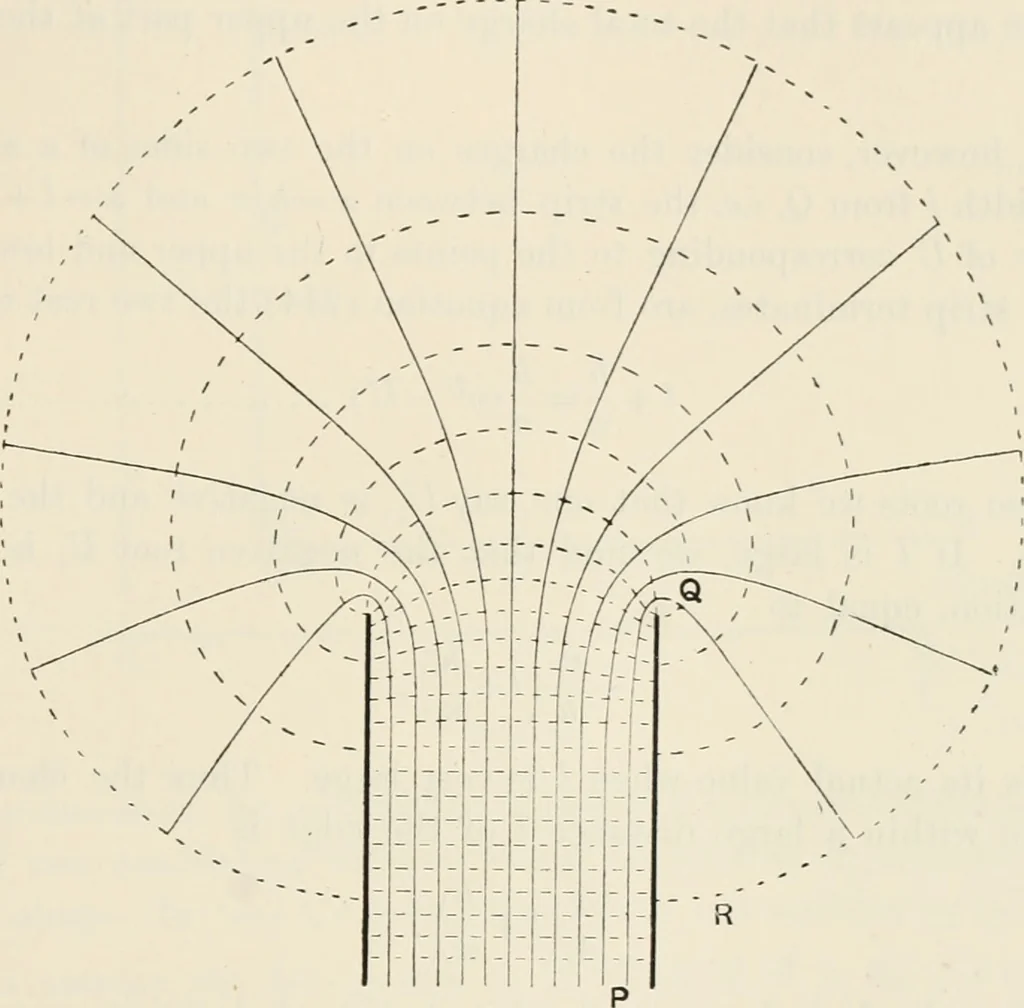

of images it is obvious that the distribution on theupper plate is the same as it would be if the lower plate were a semi-infinite plane at distance 2h instead of an infinite plane at distance h. Theequipotentials and lines of force for either problem are shewn in fig. 91. 325-328] Conjugate… … Fig. 91. On the former equipotential, the relation between x and U is x=-{eU-lT) (244). TT When U — — X , x = + cc ; as U increases, x decreases until it reaches aminimum value x = hJ7r when 17=0; and as U further increases throughpositive values x again increases, reaching x=cc when U= + oc. Thus…
