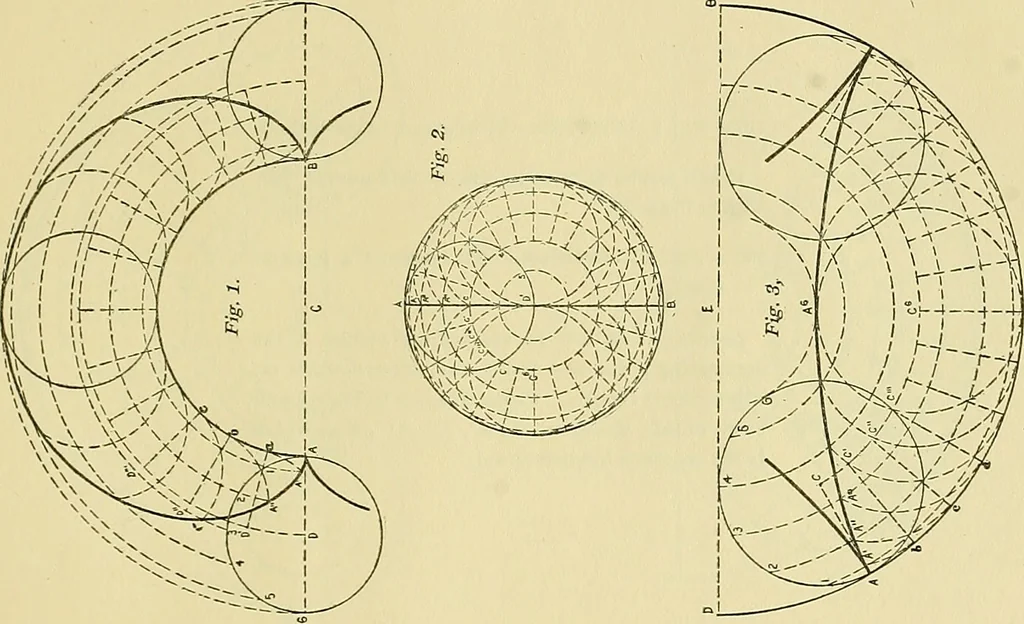

principleof the planet wheel, applied to convert directly arotation into a reciprocating movement (pump-piston ). 136.—Fig. 3.—Problem—To construct a hypocycloid. Solution.—Let C be the circle, point A the gener-ating point rolling in circle E. Relation of circles1 : 3. Make an equal division in… … 137.—Pig. 1.—Probiem.—To construct an epitrochoid. It will not be difficult to execute this curve. SeeFig. 2, Plate 29. 138.— Pig. 2.—Problem.—To construct a hypotro-choid. Solution.—Lieb C P be the rolling- circle, A thegenerating point and D J B the circumference onwhich circle C rolls.…
