The mathematical theory of electricity and magnetism (1911)
Jeans, James Hopwood, Sir, 1877-1946 · Cambridge [Eng.] : University Press · leaf 324

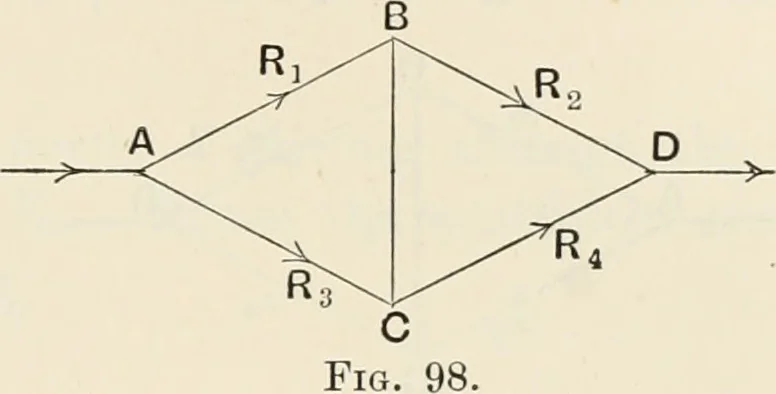

may be taken to be the resistance ofthe coil. Thus the resistance of the whole box will be the sum of theresistances of all the coils of which the plugs have been removed. 351. The Wheatstone Bridge. This is an arrangement by which it ispossible to compare the resistances of conductors, and so… … ABD, ACD arranged in parallel. The line AD is composed of two con-ductors AB, BD of resistances Ri, Ro, and the line ACD is similarly composedof two conductors AC, CD of resistances R^, R^. If current is allowed to flow through this arrangement of conductors, itwill not in general happen that the…
Electricity · Magnetism
