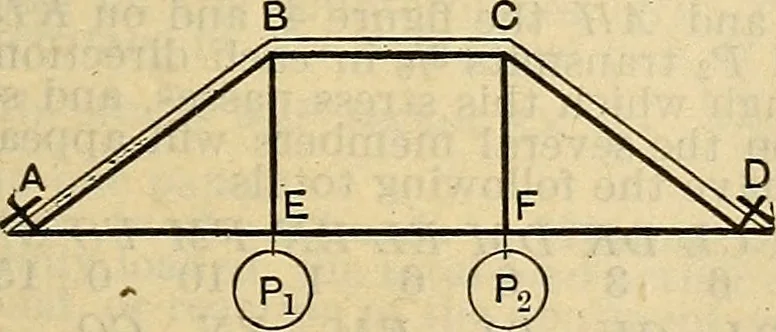

Fig. 126. … 518 MECHANICS. Inverted Queen-post Truss. (Fig. 128.) — Compression on EB andFC each = Pi or P2. Compression on AB or BC or CD = Pi X AP -*-#P.Tension on AE or FD = Pi X AP -*-PP. Tension on EF = compressionon BC. For stability to resistunequal loads, ties rhouid be runfrom C to E and from B to P.…
