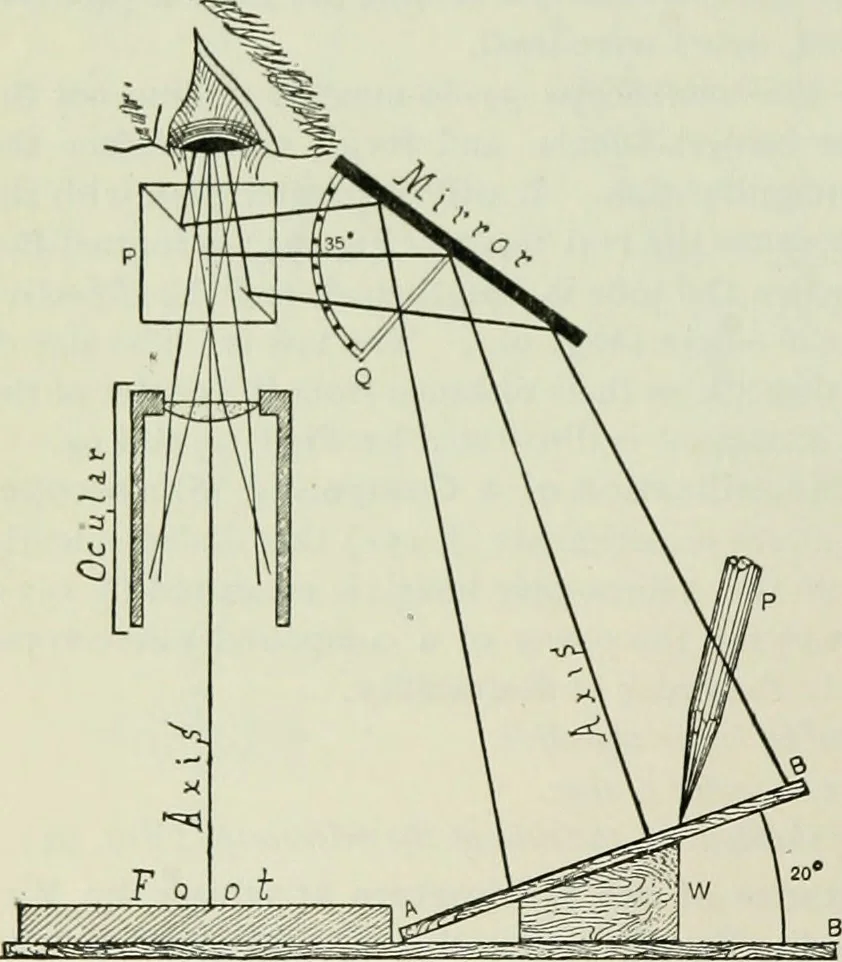

Fig. 95. Figure showing theposition of the microscope, thecamera lucida, and the eye, andthe different sizes of the imagedepending upon the distance atwhich it is projected from theeye. {a) The size at 25 an. ;[b) at35 cm., (§ 153). the simple and the compound microscope the directions were to… … Fig. 95. Sectional viewofthe Abbe Camera Lucida toshoiv that in measuring the.standard distance of 250mi Hi meters, one must meas-ure along the axis from thepoint P, at the left of theprism, to the mirror, andfrom the mirror to thedrawing surface. For afull explanation of thiscamera lucida, see…
