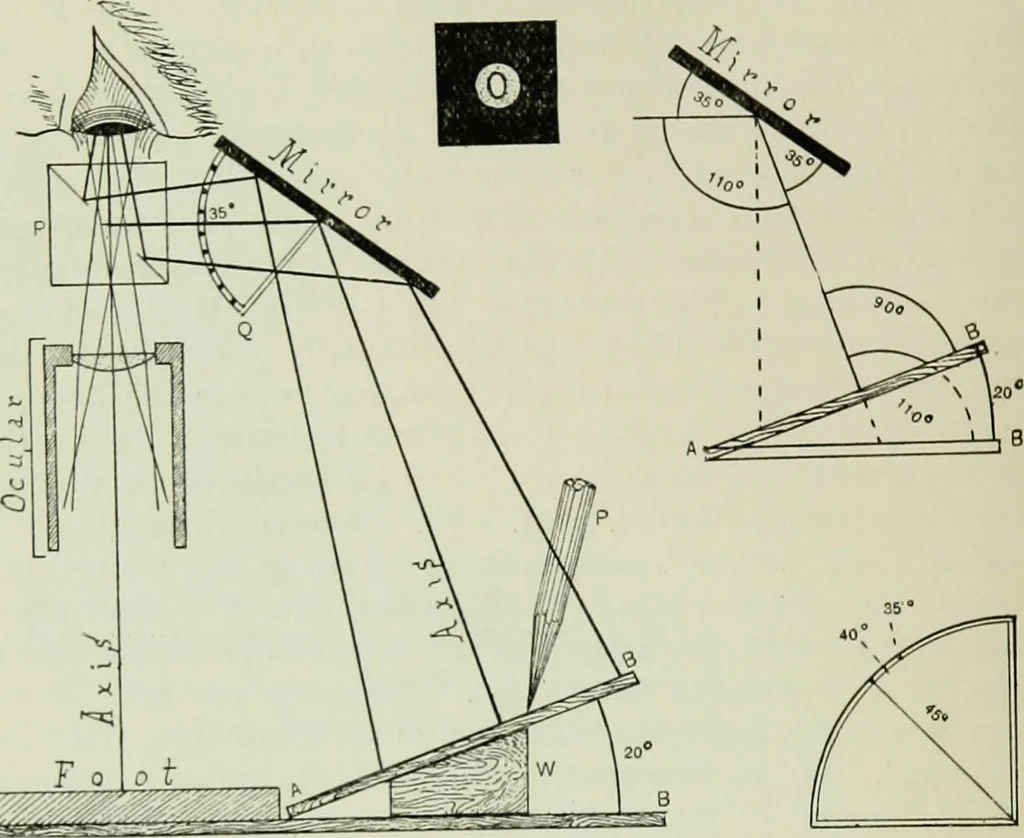

in the object would appear as ellipses in the drawings,the major axis being from right to left. The angle of the mirror may be determined with a protractor, butthat is troublesome. It is much more satisfactory to have a quadrantattached to the mirror and an indicator on the projecting arm of… … L fV^.^l ^ Fig. 106. Fig 109. Figs. 106-109. Abbe Camera Lucida in position to avoid distortion. Fig. 106. The Abbe Camera Lucida with the mirror at 35°. Axis, Axis. Axial ray from the microscope and from the drawing surface. A B. Drawing surface raised toward the microscope 20°. Foot. The foot or…
Microscopy
