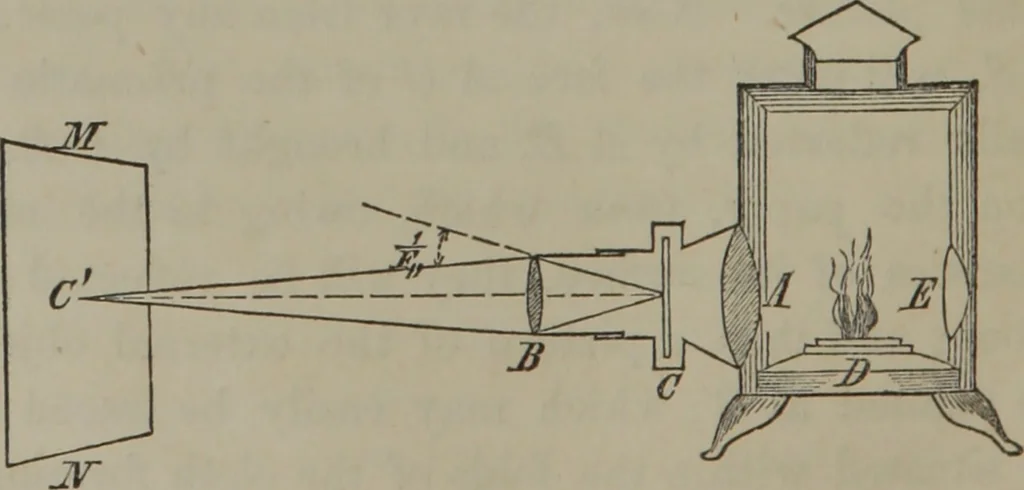

THE MAGIC LANTERN. Magic lantern; § 89. This consists of a small close chamber, fromone side of which proceeds a tube containing usuallytwo convex lenses A and B, with an intermediate open-ing for a glass slide C, which may be moved freely in Essential parts; a direction at right angles to the… … behind which is a concave reflector E. The rays pro- ELEMENTS OF OPTICS. 265 ceeding from any point in a figure, painted with some °Pticaltransparent pigment upon the glass slide and strongly fn^^nftheilluminated by the lens J_, upon which the direct light explained;from the lamp, as well as that…
