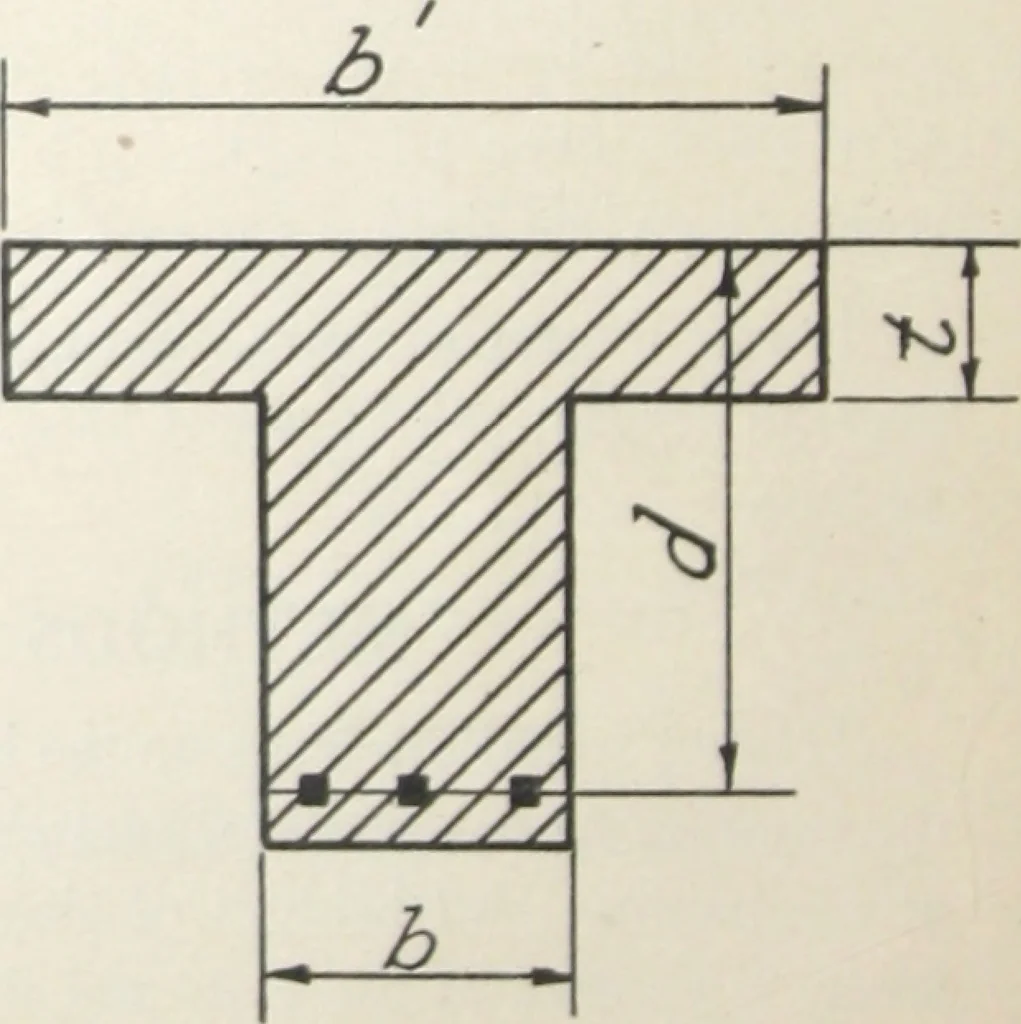

h two or more spans the girders mould he fig-ured as continuous rectangular beams and provision made for reversemoment over the supports. Percentage of Reinforcement—Use .85$ of reinforcement in slabs and rectangular beams for concrete of 2,000 pounds compressive strength. In T-beam designs limit… … Figure 8. T-Benm. 84 FORMULAE TO BE USED IN DESIGNING. Let Af=moment of resistance of section in inch lbs. .Vo—ultimate moment of resistance of section in inch lbs.</=area of reinforcement,/►^percentage of stee\=g^-bd./-==elastic limit of steel=so,ooo lbs. All dimensions as shown, in inches, and…
