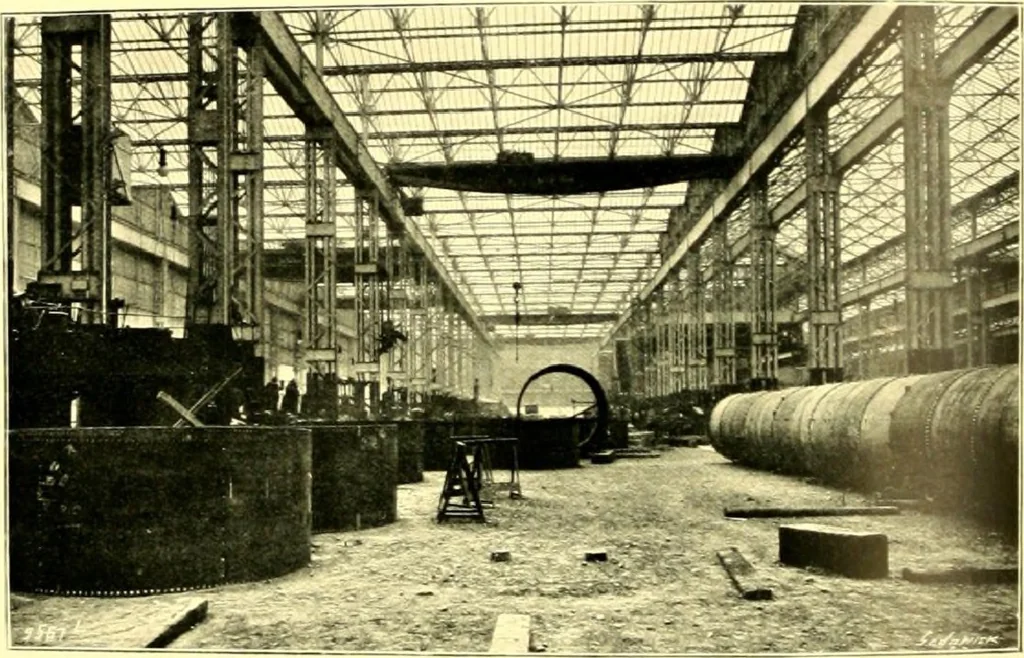

154 EXOIXI VND BOILER WORKS berth is 750 ft. loner, The superstructure over the135 ft. wide, and L50 ft. high at the end nearesl theriver The roofing is not glazed. The vertical members0f t|l(. stee] w.»rk are carried on concrete foundations.Beavy timber piling has been put in throughout thelength… … William Beardmore and Companys Boiler Works. by the ways, and under the bilge blocks. The piling isvery close near to the waters edge, where there will bethe maximum thrust when the stern of the vessel firstfloats in the process of launching. The boiler and engine shops were also designed…
