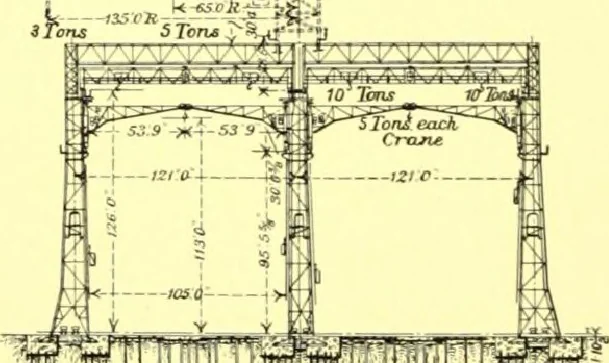

f the longitudinal girdersto carry travelling frames, which span across each berth.Each travelling frame contains two 10-ton travelling cranes. Another track is provided at the bottom of the longitudinalgirders to carry 5-ton walking cranes. The rail level ofthe central track for the cantilever… … l-H-H in il 1rffltt ttttrt-rtnrin i i nil—mr* *3BH, Section Shoving; Overhead Travelling Cranes. The cantilever crane is capable of lifting 3 tons at aradius of 135 ft., and 5 tons at a radius of 65 ft., and haslifting, racking, slewing, and travelling motions. It com-mands a length of over 1050…
