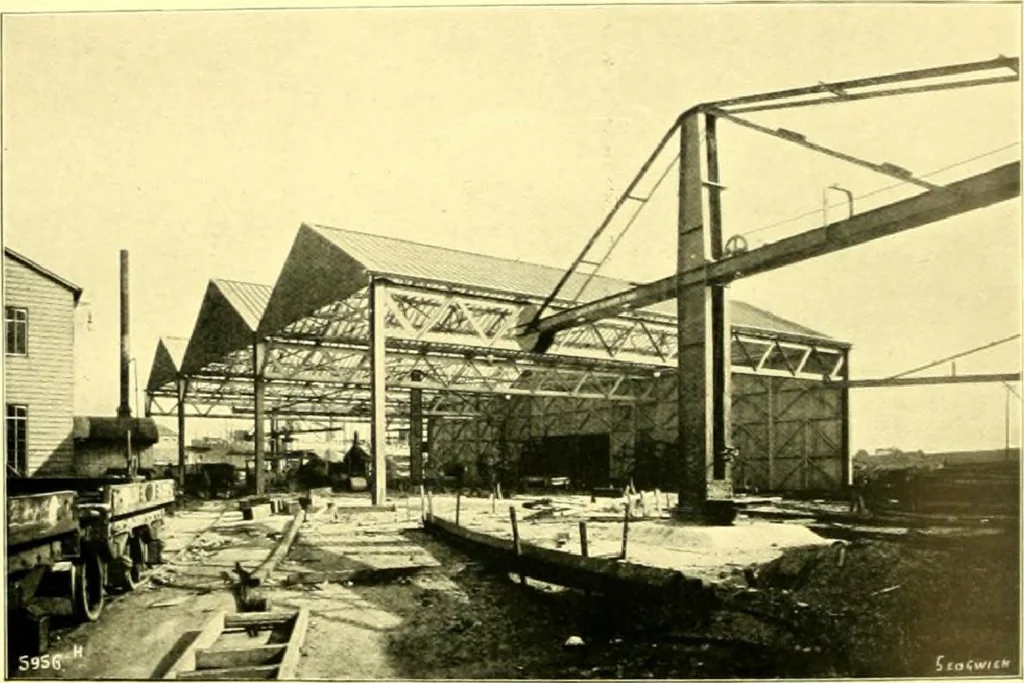

220 HYDRAULU CRANES efficient lubrication. Tlie central bearing is at the groundlevel, and consists of a roller path of large diameter, theexternal circumference of which forms the slewing drum.The slewing cylinder is fixed to the side of the mast, andthe lifting cylinder is within the girders… … A Typical Shipyard Crane at Messrs. John Brown and Companys Clydebank Works. complete circle which is a great advantage. A crane ofthis type is illustrated on the view on this page. The first of the illustrations on the opposite pageshows a 3-ton self-contained hydraulic crane, standing uponits own…
