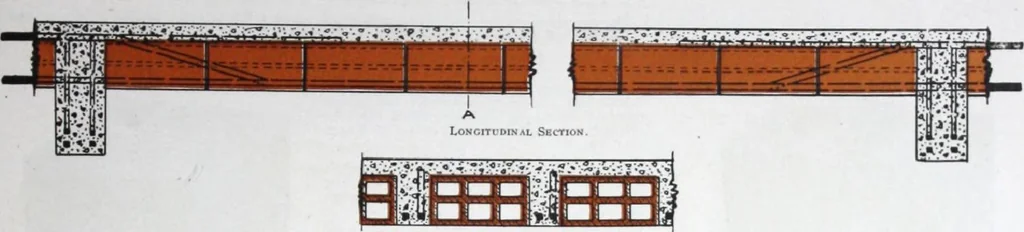

the centering, and after the courses of tile are in place thereinforced concrete joists are cast between the tile courses. The courses of tile act in compression together with the reinforced concrete rib and also act as aside centering to hold the concrete in place until it has set. If an… … Cross Section on Line A-A. Detail of Typical Long Span Combination Hollow Tile and Reinforced Concrete Floor Carried on Reinforced Concrete Beams. LOAD TABLEFOR COMBINA-TION FLOORSLAB WITH 2CONCRETE TOP. Total Safe Loads (Dead and Live) Pounds i-kk Square FootThe figures on left in tables denote…
