Illustrated catalogue of galvanized iron roofing and shedding, iron structures, &c. : patent portable steel railways, railway plant, iron bridges, &c. (1884)
A. & J. Main & Co. · A. & J. Main & Co. · leaf 31

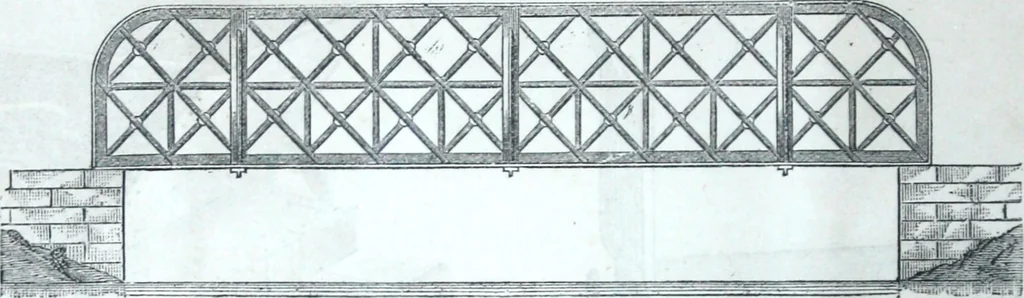

No, 3G9. No. 369 illustrates a new principle of Lattice Bridge which is now being very*frequently adopted where a simple andinexpensive structure is required. It is adapted for Foot-Passenger or Carriage Traffic up to spans of about 50 feet, and is perhapsthe cheapest Iron Girder Bridge that can be… … No. 418. The design No. 418 illustrates another form of a neat Lattice Girder Bridge, suitable for spans up to about 25 feet,well adapted for Private Policies or Public Parks, for Passengers or Carriages, where heavy traffic is not to be accommodated. It is
Roofing · Sheet roofing · Corrugated roofing · Sheet metal · Structural iron · Ironwork
